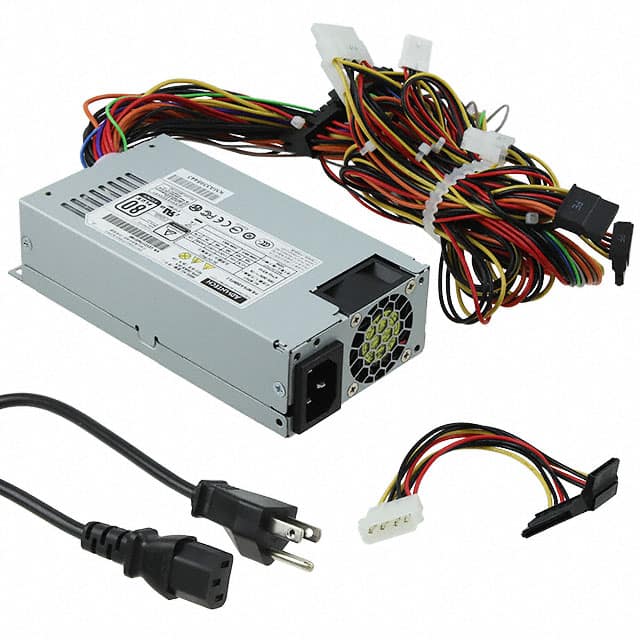

The Advantech Corp PS8-350FATX-XE is a 350W AC/DC converter designed for ITE (Commercial) applications. It features a high efficiency of 85% and supports a wide input voltage range of 100-240V AC, with an input frequency of 50-60Hz. The converter includes a PFC function and a standby output.
Key electrical specifications include multiple output voltages and currents, such as +3.3V@16A, +5V@16A, +12V1@18A, +12V2@18A, [email protected], and +5Vsb(DC)@3A. It has 5 outputs in total and a main connector type of ATX (20 + 4PIN).
Mechanically, the unit has a 1U form factor with dimensions of 150mm x 81.5mm x 40.5mm. It is designed for chassis mounting. The operating temperature range is 0°C to 50°C, with a maximum temperature of 50°C at 100% load. Storage conditions are -40°C to 75°C with 95% humidity. The product also supports operation at high altitudes up to 5,000M.
Compliance and safety certifications include FCC, UL+CUL, CE, CB, TUV, CCC(New), and BSMI. It meets the ErP Directive 2009/125/EC (Lot 6). The MTBF is rated at 200,000 hours at 25°C. It features OTP, OVP, and OCP circuit protection.
The output power is 350W.
The efficiency is 85%.
The operating temperature range is 0°C to 50°C.
Yes, it is RoHS3 Compliant.
The MSL is Level 1.
It provides +3.3V@16A, +5V@16A, +12V1@18A, +12V2@18A, [email protected], and +5Vsb(DC)@3A.
It meets FCC, UL+CUL, CE, CB, TUV, CCC(New), and BSMI standards, with a Safety & EMC Class B rating.
