| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Storage Temperature | |
| Voltage | |
| Width |

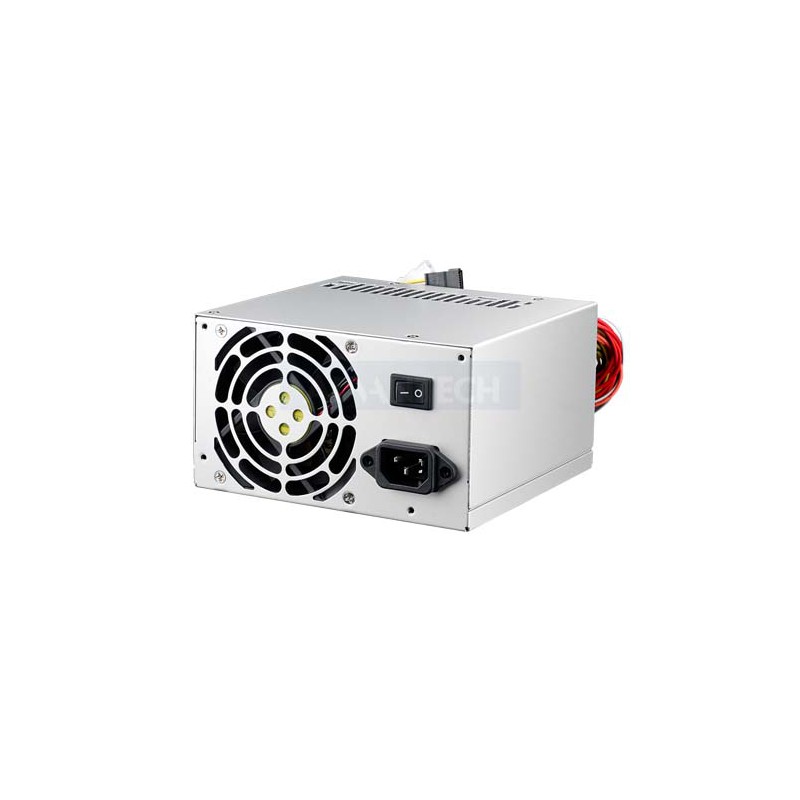

The Advantech PS8-250ATX-ZE is a 250W ATX power supply designed for industrial and commercial applications. It operates with a wide AC input range of 100-240V and boasts 80+ Bronze efficiency, ensuring reliable power delivery.
Key electrical specifications include multiple output rails such as +3.3V @ 20A, +5V @ 21A, and dual +12V @ 16A each, along with -12V @ 0.3A and +5Vsb @ 2.5A. The unit supports features like Power Factor Correction (PFC), a standby output, and universal input.
With a compact form factor measuring 140 x 150 x 86 mm, it is suitable for chassis mounting. The operating temperature range is from 0°C to 50°C, and it has a high MTBF of 100K hours at 25°C. Safety certifications include CCC, CE, and cULus.
This power supply is designed for ITE (Commercial) applications and offers protection circuits for OTP, OVP, and OCP. It is listed as RoHS3 Compliant and has an MSL of 1.
The output power is 250W.
The input voltage range is 100 to 240 VAC.
The operating temperature range is 0°C to 50°C.
Key features include 80+ Bronze efficiency, PFC, standby output, and universal input.
The dimensions are 140 x 150 x 86 mm.
The product is listed as RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
