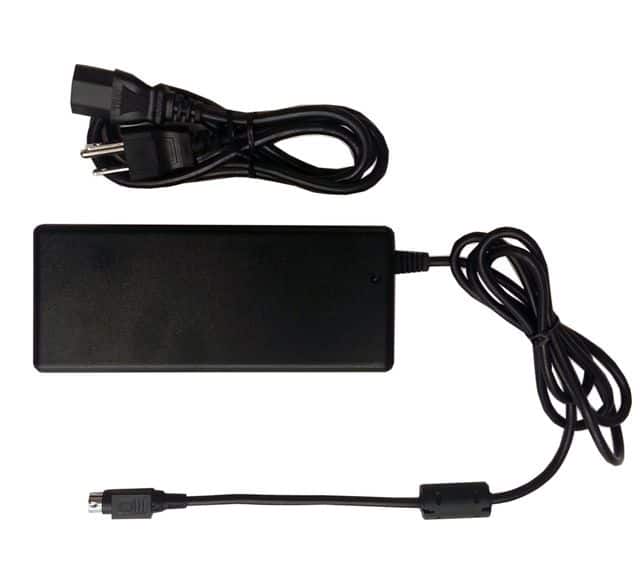

The Tycon Systems Inc. PS48V-2.5 is a 120W AC/DC desktop power supply designed for reliable power delivery. It features a 48VDC output with a continuous load current of 2.5A, providing a total of 120 watts.
This power supply operates within an input voltage range of 90-264VAC and boasts an efficiency of 80% minimum. It includes essential protections such as short circuit and over-current protection, making it suitable for demanding applications. The operating temperature range is -20°C to 60°C, with a storage temperature range of -40°C to 80°C.
The unit comes with a 1.2m (48") DC cable and a 5.5/2.1mm DC barrel connector. Its compact case size measures 140 x 60 x 34mm, and it weighs 435g. Certifications include UL, CE, FCC, and RoHS compliance. The MTBF is rated at a minimum of 50,000 hours, and it comes with a 3-year warranty.
Applications for this power supply include wireless access points and client devices, IP phone and security camera systems, and other indoor DC power needs. It is designed for industrial temperature ratings and high power in a compact size.
90-264 VAC at 47/63 Hz.
Desktop (Class II) with a 1.2m cable and 5.5 x 2.1mm DC barrel plug.
-20°C to 60°C (-4°F to 140°F).
120W at 48V and 2.5A.
Short circuit and over-current protection.
Minimum 80%.
