Mfr Part #:

PS3X-E24AFC

Mfr Name: Idec

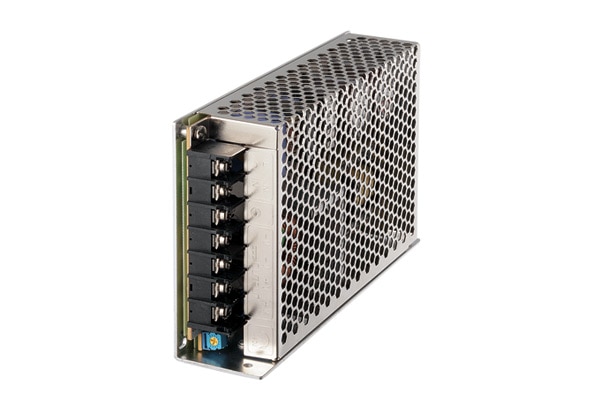

The Idec PS3X-E24AFC is a 100W AC DC converter with a 24VDC output. It features an AC 100-240V input and a metal frame type.

Stock on Request

PS3X-E24AFC Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	AC DC Converters
Manufacturer Name	Idec
Input Type	AC Input
Input Voltage	AC 100/240V
Mounting Type	Direct Mount, DIN Rail Mount
Output Voltage	DC 24V

View Similar Products (0)

PS3X-E24AFC Description

Short technical summary and product information.

The Idec PS3X-E24AFC is a switching power supply designed for AC to DC conversion. It operates with an input voltage range of AC 100 to 240V and delivers a stable 24VDC output with a maximum power capacity of 100W.

This power supply features a metal frame construction, making it suitable for various industrial applications. It supports both direct mounting and DIN rail mounting, offering flexibility in installation. The PS3X-E24AFC is part of the PS3X series, known for its AC free input and compliance with EMC standards like EN55032 Class B.

Key electrical specifications include a nominal 100W output power and a 24VDC nominal output voltage. The input voltage range is AC 100/240V. The unit is classified as an AC input type and has a metal frame body shape. It is noted as being RoHS3 compliant and has an MSL of 1.

PS3X-E24AFC Quick Information

Product Type: AC DC Converter

Series: PS3X

Canonical Name: Idec PS3X-E24AFC Switching Power Supply

Subcategory: AC DC Converters

PS3X-E24AFC Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PS3X-E24AFC Features

100W output power capacity.
24VDC nominal output voltage.
AC 100-240V input range.
Metal frame construction.
Direct or DIN rail mounting.

PS3X-E24AFC Applications

Powers DC loads in industrial control panels.
Suitable for factory automation equipment.
Used in DIN rail-mounted power distribution.
Ideal for 24V sensor and actuator supply.

PS3X-E24AFC FAQs

6 frequently asked questions generated from this part’s specifications.

What is the output voltage of the Idec PS3X-E24AFC?

The Idec PS3X-E24AFC has a nominal output voltage of 24VDC.

What is the output power capacity of the PS3X-E24AFC?

The PS3X-E24AFC has an output power capacity of 100W.

What is the input voltage range for the Idec PS3X-E24AFC?

The Idec PS3X-E24AFC accepts an input voltage range of AC 100 to 240V.

What type of mounting is supported by the PS3X-E24AFC?

The PS3X-E24AFC supports both direct mounting and DIN rail mounting.

Is the Idec PS3X-E24AFC RoHS compliant?

The Idec PS3X-E24AFC is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the PS3X-E24AFC?

The Moisture Sensitivity Level (MSL) for the PS3X-E24AFC is 1 Unlimited.
