| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,007 pcs
|
23007 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Co | |
| Core Processor | |
| Display & Interface Controllers | |
| Ethernet | |
| Graphics Acceleration | |
| Lead Spacing | |
| Mounting Type | |
| Number of Cores | |
| Operating Temperature | |
| RAM Controllers | |
| Security Features | |
| Speed | |
| Supplier Device Package | |
| Voltage |

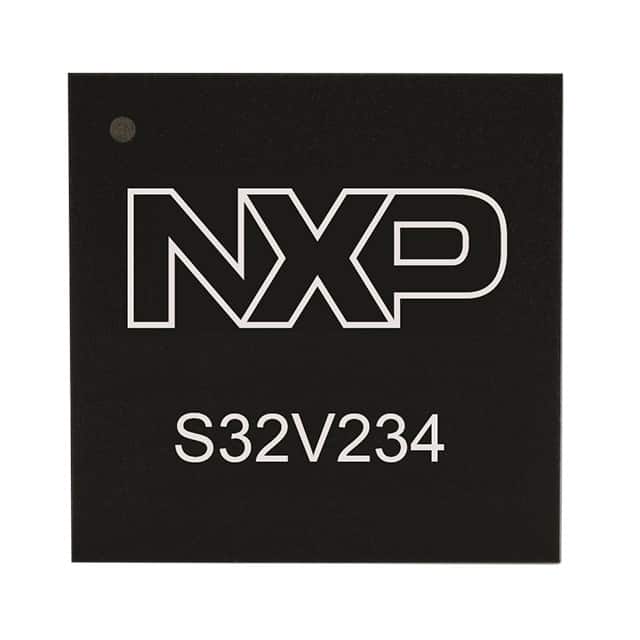

The NXP Semiconductors S32V234 processor, part number PS32V234CMN1AVUB, is a 64-bit multi-core processor engineered for vision and ADAS applications in transportation and industrial markets. It boasts quad Arm Cortex-A53 cores operating at up to 1 GHz, delivering approximately 10,000 DMIPS for demanding computational tasks.
This processor integrates dual APEX-2 vision accelerators, enabled by OpenCL and OpenCV, for efficient image cognition processing. It also includes a Vivante GC3000 3D GPU, an embedded ISP for HDR and color processing, and MIPI CSI2 interfaces for image sensor input. The PS32V234 is developed according to ISO 26262 standards, addressing ASIL B/C requirements for automotive safety.
Key features include a HIS-SHE compliant Crypto Service Engine (CSE2) for hardware security, Arm TrustZone technology, and comprehensive functional safety mechanisms like memory ECC and software self-tests. The processor supports LPDDR2, DDR3, and DDR3L memory controllers and offers high-speed serial interfaces including PCIe and FlexRay.
Packaged in a 621-FCPBGA (17x17) format, the PS32V234CMN1AVUB is designed for surface mounting. It operates within a temperature range of -40°C to 105°C (TA) and utilizes multiple voltage rails (1.0V, 1.8V, 3.3V).
| Qty | Low | High |
|---|---|---|
| 1+ | $11.19 | $11.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The core processor architecture includes ARM Cortex-A53 and ARM Cortex-M4.
It has 4 cores, 64-Bit, and 1 core, 32-Bit.
The operating speed is 1.0GHz for the A53 cores and 133MHz for the M4 core.
The operating voltages are 1.0V, 1.8V, and 3.3V.
The operating temperature range is -40°C to 105°C (TA).
Yes, it supports graphics acceleration.
It is supplied in a 621-FBGA, FCBGA package.
