Mfr Part #:

PS2P-ARC-CE-M009-A-45S-05

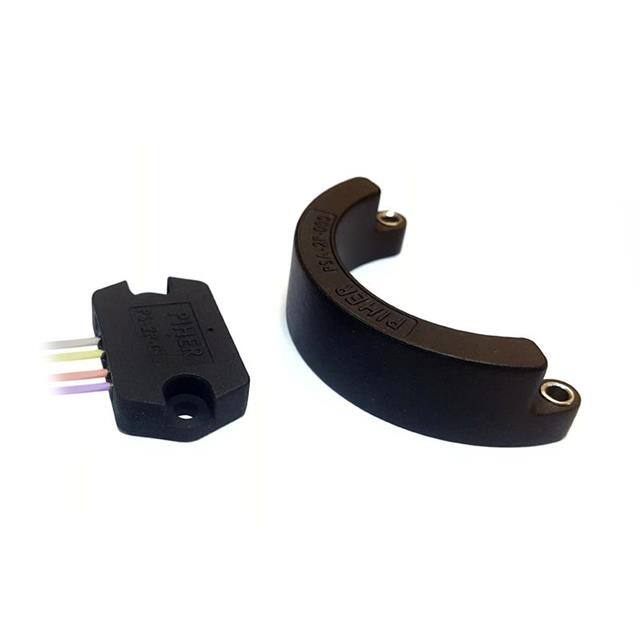

Name: PS2P-ARC-CE-M009-A-45S-05
Brand: Amphenol Piher
SKU: PS2P-ARC-CE-M009-A-45S-05

Mfr Name: Amphenol Piher

Description:

ARC ANGULAR SENSOR, 12 BIT REDUN

Stock on Request

PS2P-ARC-CE-M009-A-45S-05 Description

Short technical summary and product information.

ARC ANGULAR SENSOR, 12 BIT REDUN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Amphenol Piher

ARC ANGULAR SENSOR, 12 BIT REDUN

Category	Position Sensors - Angle, Linear Position Measuring
Manufacturer Name	Amphenol Piher
Actuator Type	External Magnet, Not Included
For Measuring	Angle, Linear
Linear Range	0 ~ 2.00mm (0 ~ 0.08")
Linearity	±1%
Mounting Type	Chassis Mount
Operating Temperature	-40°C ~ 125°C
Output	Analog Voltage
Output Signal	Clockwise Increase
Rotation Angle	0° ~ 45°
Technology	Magnetoresistive
Termination Style	Wire Leads
Voltage	4.5V ~ 5.5V
