| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,766 pcs
|
3766 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,716 pcs
|
1716 pcs | On Request | 1 | On Request | On Request | 1422+ | On Request | On Request | |
|
110 pcs
|
110 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Transfer Ratio (Max) | |
| Current Transfer Ratio (Min) | |
| Input Type | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Rise | |
| Supplier Device Package | |
| Turn On | |
| Vce Saturation (Max) | |
| Voltage |

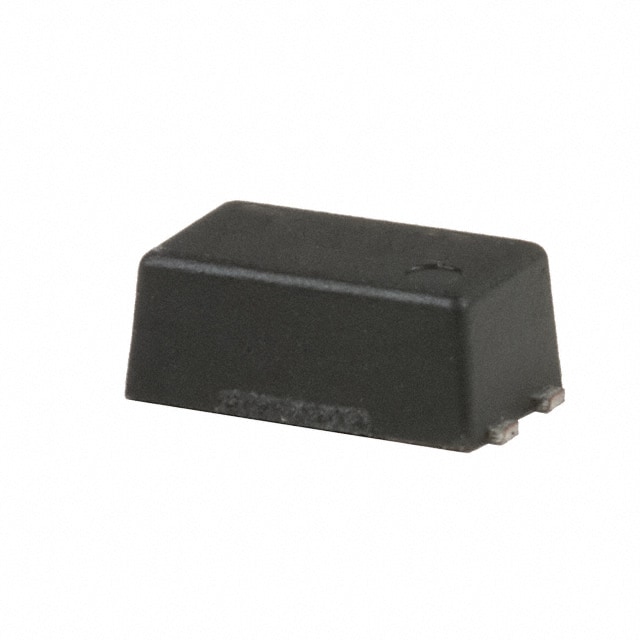

The Renesas PS2911-1-F3-AX is an optoisolator with a transistor output, providing 2500Vrms of isolation. This component is suitable for various electronic applications requiring signal isolation.
Key electrical specifications include a minimum current transfer ratio of 100% at 1mA and a maximum of 400% at 1mA. The Vce saturation is a maximum of 300mV. It operates with a DC input type and can handle up to 50 mA of current. The device has a typical turn-on time of 40µs and turn-off time of 120µs, with rise and fall times typically around 5µs.
This optoisolator is designed for surface mounting and comes in a 4-SMD, flat leads package, specifically referred to as a 4-Mini-Flat. It operates within a temperature range of -55°C to 100°C. The product is RoHS3 compliant, has an MSL of 1, and is REACH unaffected, though these compliance statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation voltage is 2500Vrms.
It has 1 channel.
The output type is Transistor.
The operating temperature range is -55°C to 100°C.
The minimum current transfer ratio is 100% at 1mA.
The package type is 4-SMD, Flat Leads.
