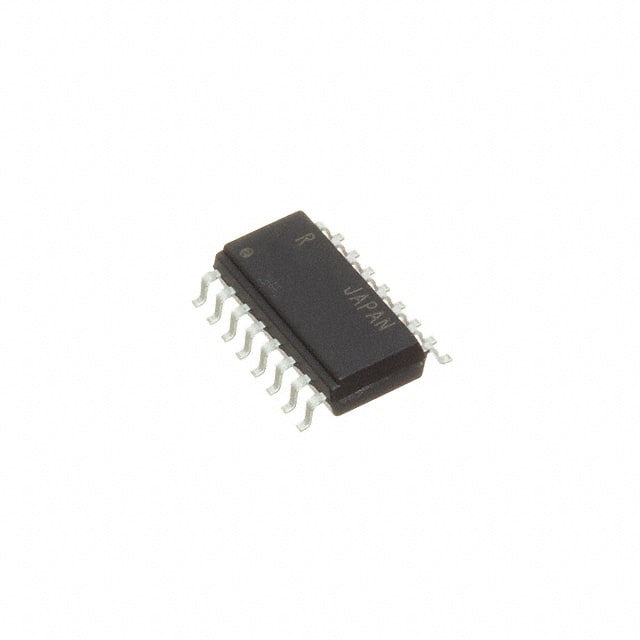

PS2833-4-A The Renesas PS2833-4-A is a 4-channel optocoupler with Darlington output, offering 2500Vrms isolation. It comes in a 16-SOIC package suitable for surface mounting.
Mfr Part #:

PS2833-4-A

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas PS2833-4-A is a 4-channel optocoupler with Darlington output, offering 2500Vrms isolation. It comes in a 16-SOIC package suitable for surface mounting.
✓ Total Stock: 10,044 pcs
$ Price Range: $0.39

PS2833-4-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
10,044 pcs
On Request
10044 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PS2833-4-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Transfer Ratio (Max)
Current Transfer Ratio (Min)
Input Type
Lead Spacing
Mounting Type
Number of Channels
Operating Temperature
Output Type
Rise
Supplier Device Package
Vce Saturation (Max)
Voltage
View Similar Products (0)

PS2833-4-A Description

Short technical summary and product information.

The Renesas PS2833-4-A is a 4-channel optocoupler designed for transistor and photovoltaic output applications. It provides a high isolation voltage of 2500Vrms, making it suitable for applications requiring electrical isolation.



Key electrical specifications include a typical forward voltage of 1.2V at 1mA, a maximum Vce saturation of 1V, and a maximum DC forward current of 50mA. The output current per channel is rated at 60mA. Current transfer ratios range from a minimum of 400% at 1mA to a maximum of 4500% at 1mA.



This optocoupler operates within a temperature range of -55°C to 100°C. It features a Darlington output type and DC input. The rise and fall times are specified as 20µs and 5µs, respectively.



Packaged in a 16-SOIC (0.173", 4.40mm Width) case, the PS2833-4-A is designed for surface mounting. It utilizes industry-standard static shielding packaging to protect against electrostatic discharge during handling and transportation.

PS2833-4-A Quick Information

Product Type: Optocoupler
Series: NEPOC
Canonical Name: PS2833-4-A Optocoupler, Optoisolator - Transistor, Photovoltaic Output
Subcategory: Optoisolator - Transistor, Photovoltaic Output

PS2833-4-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PS2833-4-A Estimated Pricing

Qty Low High
1+ $0.39 $0.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

PS2833-4-A Features

  • 4-channel optocoupler with Darlington output.
  • Provides 2500Vrms of electrical isolation.
  • Surface mountable in a 16-SOIC package.
  • Operates from -55°C to 100°C.
  • RoHS3 compliant status.

PS2833-4-A Applications

  • Ideal for power supply control circuits.
  • Used in industrial automation systems.
  • Suitable for telecommunication equipment.
  • Applicable in measurement instrumentation.

PS2833-4-A FAQs

5 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the PS2833-4-A?

The PS2833-4-A offers 2500Vrms of isolation voltage.

What is the operating temperature range for this optocoupler?

The operating temperature range for the PS2833-4-A is -55°C to 100°C.

What type of output does the PS2833-4-A have?

The PS2833-4-A features a Darlington output type.

What package is the PS2833-4-A supplied in?

The PS2833-4-A is supplied in a 16-SOIC package.

How is the PS2833-4-A mounted?

The PS2833-4-A is designed for surface mounting.
