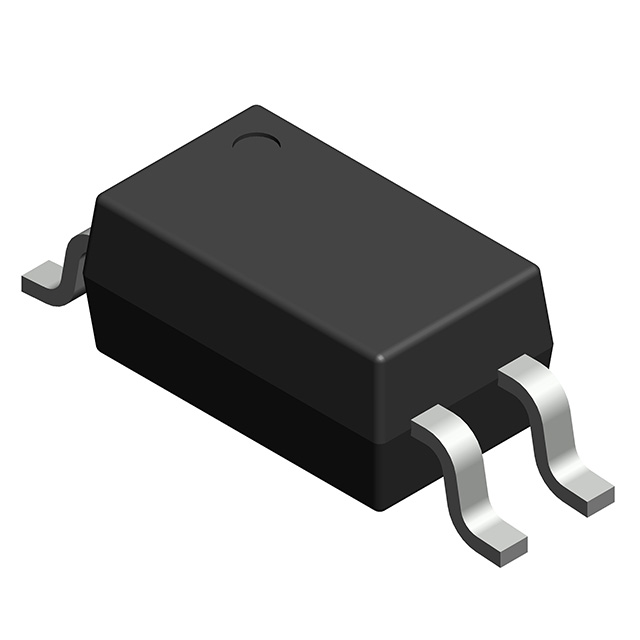

The Renesas PS2701-1-F3-A is an optocoupler designed for signal isolation applications. It provides 3750Vrms of isolation voltage and operates with a DC input type.
Key electrical specifications include a maximum output voltage of 80V and a maximum output current of 50mA. The device offers a typical forward voltage of 1.17V and a Vce saturation of 300mV maximum. Current transfer ratios range from a minimum of 50% at 5mA to a maximum of 300% at 5mA. Rise and fall times are typically 3µs and 5µs, respectively.
This optocoupler is housed in a 4-SMD, Gull Wing package, suitable for surface mounting. It operates within a temperature range of -55°C to 100°C. The PS2701-1-F3-A is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation voltage is 3750Vrms.
The maximum output voltage is 80V.
The typical forward voltage is 1.17V.
The operating temperature range is -55°C to 100°C.
Yes, it is ROHS3 Compliant.
It is a 4-SMD, Gull Wing package.
