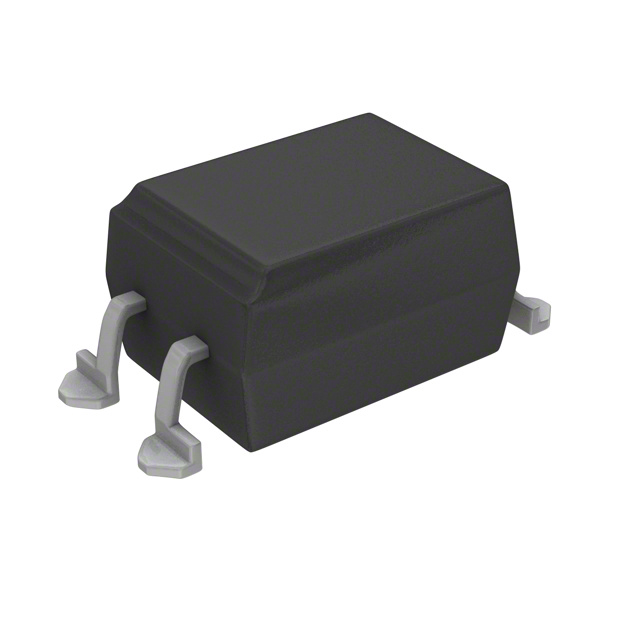

PS2565L-1-A The Renesas PS2565L-1-A is an optoisolator featuring 5000Vrms isolation and a transistor output. It is housed in a 4-SMD, Gull Wing package.
Mfr Part #:

PS2565L-1-A

Available from 2 distributors
Mfr Name: Renesas
Renesas
The Renesas PS2565L-1-A is an optoisolator featuring 5000Vrms isolation and a transistor output. It is housed in a 4-SMD, Gull Wing package.
✓ Total Stock: 227,450 pcs
$ Price Range: $0.39

PS2565L-1-A Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
226,000 pcs
On Request
226000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,450 pcs
On Request
1450 pcs On Request 1 On Request On Request 1239+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PS2565L-1-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Transfer Ratio (Max)
Current Transfer Ratio (Min)
Forward Voltage
Input Type
Mounting Type
Number of Channels
Operating Temperature
Output Type
Rise
Supplier Device Package
Vce Saturation (Max)
Voltage
View Similar Products (0)

PS2565L-1-A Description

Short technical summary and product information.

The Renesas PS2565L-1-A is an optoisolator designed for applications requiring high isolation voltage. It provides 5000Vrms of isolation and features a transistor output, making it suitable for various signal transfer needs.



Key electrical specifications include a maximum output voltage of 80V and a nominal output current of 50mA per channel. The device operates with AC or DC input and has a typical forward voltage of 1.17V at a maximum DC forward current of 80 mA. The Vce saturation is a maximum of 300mV. The current transfer ratio ranges from a minimum of 80% at 5mA to a maximum of 400% at 5mA.



This optoisolator is designed for surface mounting and comes in a 4-SMD, Gull Wing package. It operates within a temperature range of -55°C to 100°C. The standard package quantity is 100 units.

PS2565L-1-A Quick Information

Product Type: Optoisolator
Series: NEPOC
Canonical Name: Renesas PS2565L-1-A Optoisolator
Subcategory: Optoisolator Transistor Output

PS2565L-1-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PS2565L-1-A Estimated Pricing

Qty Low High
1+ $0.39 $0.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

PS2565L-1-A Features

  • Provides 5000Vrms isolation voltage.
  • Features a transistor output type.
  • Operates from -55°C to 100°C.
  • Surface mountable 4-SMD package.
  • Supports AC and DC input signals.

PS2565L-1-A Applications

  • Suitable for high voltage isolation.
  • Used in signal transfer circuits.
  • Ideal for power supply applications.
  • Component in control systems.

PS2565L-1-A FAQs

5 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the PS2565L-1-A?

The PS2565L-1-A offers 5000Vrms of isolation.

What is the operating temperature range for this optoisolator?

The operating temperature range is -55°C to 100°C.

What type of output does the PS2565L-1-A have?

It has a transistor output.

What is the package type for the PS2565L-1-A?

The package is a 4-SMD, Gull Wing, suitable for surface mounting.

What is the RoHS status of the PS2565L-1-A?

The RoHS status is RoHS3 Compliant.
