| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Failure Rate | |
| Input Type | |
| Lead Spacing | |
| Mounting Type | |
| Number of Channels | |
| Output Type |

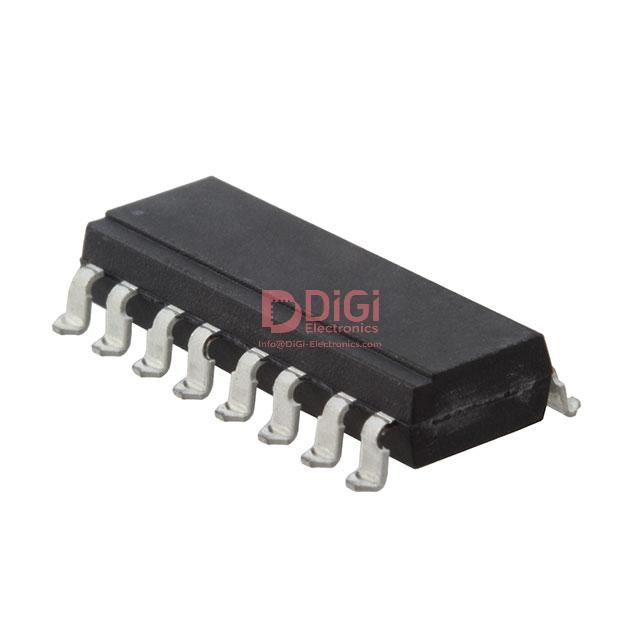

The CEL PS2501L-4A is a 4-channel optoisolator designed for reliable signal isolation in electronic circuits. It features a transistor output and provides a high isolation voltage of 5000Vrms, ensuring safety and performance.
Key electrical specifications include a minimum current transfer ratio of 80% at 5mA and a maximum of 600% at 5mA. The device has a typical rise and fall time of 3µs and 5µs, respectively. It accepts DC input and can deliver up to 50mA of output current per channel, with a maximum output voltage of 80V.
Packaged in a 16-SMD format, this optoisolator is designed for surface mount applications. The NEPOC series designation indicates its specific product family.
This component is suitable for applications requiring robust isolation between circuits, protecting sensitive components from voltage transients and noise.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.60 | $7.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PS2501L-4A optoisolator has an isolation voltage of 5000Vrms.
The PS2501L-4A optoisolator features 4 channels.
The PS2501L-4A optoisolator has a transistor output type.
The typical rise time is 3µs and the typical fall time is 5µs for the PS2501L-4A.
The PS2501L-4A optoisolator can provide up to 50mA of output current per channel.
The minimum CTR is 80% at 5mA, and the maximum CTR is 600% at 5mA for the PS2501L-4A.
