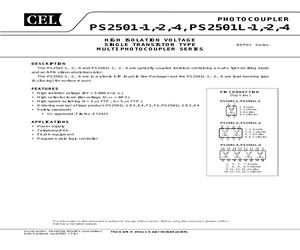

The NEC PS2501L-2A is a 2-channel optocoupler featuring transistor outputs. It provides a high isolation voltage of 5000V, making it suitable for applications requiring electrical separation.
Key electrical specifications include a maximum input forward current of 80mA and a collector-emitter breakdown voltage of 80V. The device offers a minimum current transfer ratio of 80% at 5mA and a maximum of 600% at 5mA. Its Vce saturation is a maximum of 300mV, and the collector dark current is a maximum of 100nA.
Designed for surface mounting, the PS2501L-2A comes in an 8-SMD, Gull Wing package. It operates reliably within an extended temperature range of -55°C to 100°C. The optocoupler is compliant with EU RoHS standards and is lead-free.
This component is ideal for applications requiring signal isolation between circuits with different voltage potentials, such as in power supplies, industrial control, and telecommunications equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.53 | $0.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PS2501L-2A provides 5000V of isolation.
The maximum input forward current is 80mA.
The operating temperature range is -55°C to 100°C.
The PS2501L-2A is supplied in an 8-SMD, Gull Wing package.
The CTR is 80% minimum at 5mA and 600% maximum at 5mA.
The minimum collector-emitter breakdown voltage is 80V.
