Mfr Part #:

PS2501-4-A

Name: PS2501-4-A
Brand: Renesas
SKU: PS2501-4-A

Mfr Name: Renesas

Description:

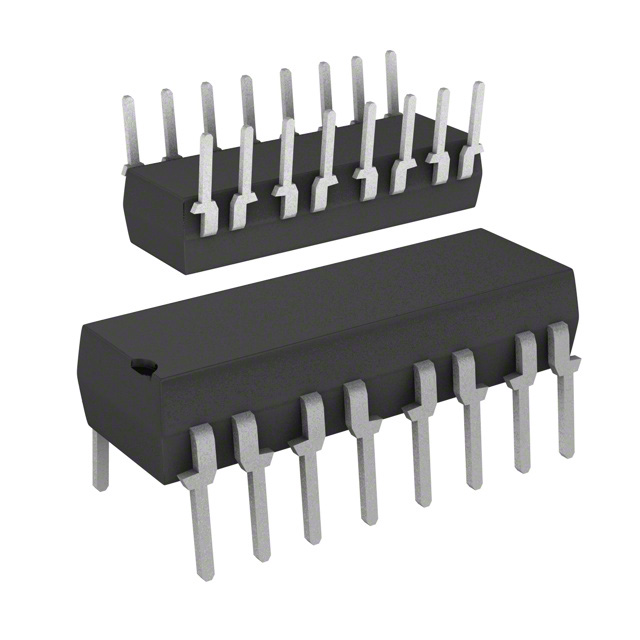

OPTOISOLATOR 5KV 4CH TRANS 16DIP

Stock on Request

PS2501-4-A Description

Short technical summary and product information.

OPTOISOLATOR 5KV 4CH TRANS 16DIP

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Optoisolators - Transistor, Photovoltaic Output
Manufacturer Name	Renesas
Current	80 mA
Current Transfer Ratio (Max)	600% @ 5mA
Current Transfer Ratio (Min)	80% @ 5mA
Input Type	DC
Mounting Type	Through Hole
Number of Channels	4
Operating Temperature	-55°C ~ 100°C
Output Type	Transistor
Rise	3µs, 5µs
Supplier Device Package	16-DIP
Vce Saturation (Max)	300mV
Voltage	5000Vrms
