| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Protection Features | |
| Region Utilized | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Weight | |
| Width |

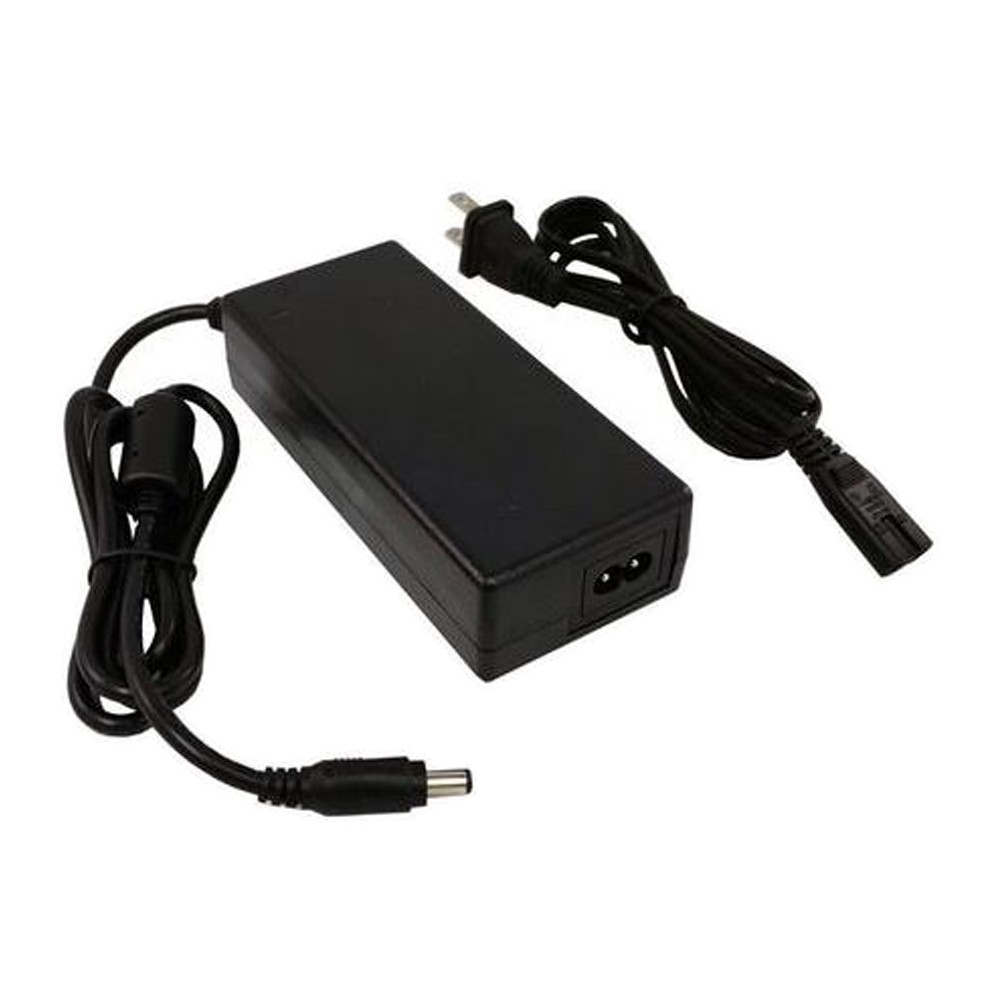

The Tycon Systems Inc. PS24V-3.75 is a 90W AC/DC switching power supply designed for versatility and reliability. This desktop model operates with an input range of 90-264VAC and delivers a stable 24VDC output at a continuous load current of 3.75A. It boasts an efficiency of 80% minimum and includes essential protection features such as short circuit and overcurrent protection.
Designed for demanding environments, this power supply operates within an industrial temperature range of -20°C to 60°C. Its compact dimensions (140 x 60 x 34mm) and desktop form factor make it suitable for various installations. The unit features a standard IEC 320-C8 input connector and a 5.5 x 2.1mm DC barrel output connector with a 1.2m cord and positive center polarization.
Certified by CE, FCC, and UL, the PS24V-3.75 is suitable for ITE (Commercial) applications and international use. It is compliant with RoHS3 standards and has an MSL of 1. The power supply is built for durability with a minimum MTBF of 50,000 hours and comes with a 3-year warranty.
The input voltage range is 90-264 VAC at 47-63 Hz.
The output voltage is 24 VDC with a tolerance of ±1 VDC, and the continuous load current is 3.75 A.
The operating temperature range is -20°C to 60°C (-4°F to 140°F).
The adapter is a desktop (Class II) unit measuring 140 x 60 x 34 mm (5.51 x 2.36 x 1.34 inches).
It includes short circuit and over-current protection.
It is certified to CE, FCC, and UL standards.
The minimum efficiency is 80%.
