| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Failure Rate | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

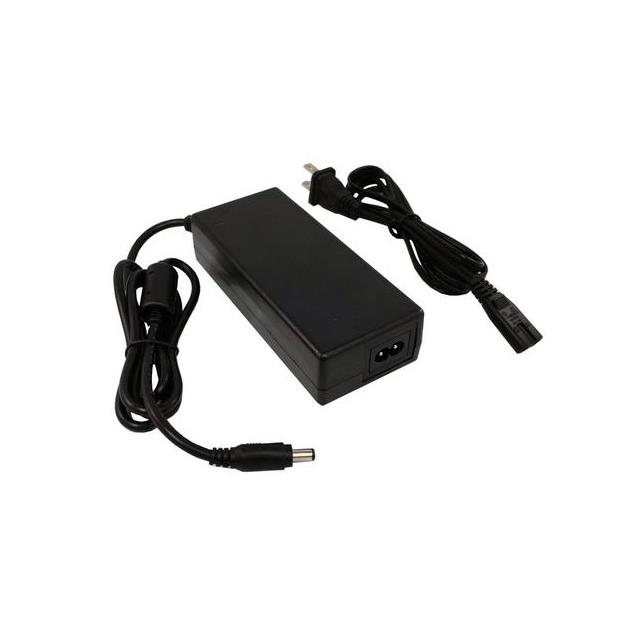

The Tycon Systems Inc. PS24V-3.75 is an AC/DC external desktop adapter with a power output of 90W. It provides a stable 24V output at a maximum current of 3.75A, with an efficiency rating of 80%. The adapter is designed for international regions and accepts an input voltage range of 90 to 264 VAC.
This adapter features a positive center polarization and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm). The input connector is IEC 320-C8. Its dimensions are 139.7mm x 61.0mm x 33.0mm, making it a compact desktop unit.
The operating temperature range for this adapter is -20°C to 60°C. It is suitable for ITE (Commercial) applications and belongs to the PS series. The adapter comes in a retail package.
The adapter provides a 24V output at a maximum current of 3.75A.
The adapter has a power rating of 90W.
The adapter has an efficiency of 80%.
The adapter accepts an input voltage range of 90 to 264 VAC.
The adapter can operate within a temperature range of -20°C to 60°C.
The adapter measures 139.7mm x 61.0mm x 33.0mm.
It uses a Barrel Plug with a 2.1mm I.D. x 5.5mm O.D. x 11.0mm size.
