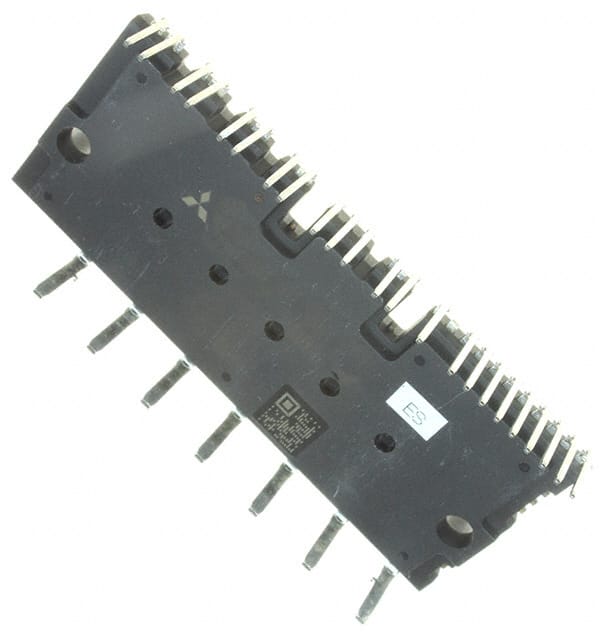

PS22A76 The Powerex Inc. PS22A76 is a 1200V, 25A IGBT Power Driver Module designed for 3-phase inverter applications. It features an insulated transfer molding package and Through Hole mounting.
Mfr Part #:

PS22A76

Available from 1 distributors
Mfr Name: Powerex Inc.
Powerex Inc.
The Powerex Inc. PS22A76 is a 1200V, 25A IGBT Power Driver Module designed for 3-phase inverter applications. It features an insulated transfer molding package and Through Hole mounting.
✓ Total Stock: 3,600 pcs
$ Price Range: $2.94

PS22A76 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PS22A76 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Input Voltage
Junction Temperature
Mounting Type
Storage Temperature
Tape & Reel
Type
Voltage
View Similar Products (0)

PS22A76 Description

Short technical summary and product information.

The PS22A76 from Powerex Inc. is a 3-phase DC/AC inverter module designed for AC 400V class motor control applications. This insulated transfer molding type module integrates drive, protection, and system control functions, including high voltage high-speed level shifting and under-voltage protection for both P-side and N-side IGBTs. It also incorporates short circuit protection for the N-side IGBT and fault signaling.



Key electrical specifications include a collector-emitter voltage of 1200V and a continuous collector current of 25A. The module offers an isolation voltage of 2500Vrms. It operates within a junction temperature range of -20°C to +150°C and a module case operation temperature of up to 100°C.



The PS22A76 is housed in a large DIP package with Through Hole mounting. It is UL Recognized under file E80276. This component is suitable for applications such as air conditioners, cloth washers, refrigerators, dish washers, fans, and pumps.

PS22A76 Quick Information

Product Type: Power Driver Module
Canonical Name: PS22A76 1200V 25A 3 Phase IGBT Power Driver Module
Subcategory: Power Driver Module

PS22A76 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PS22A76 Estimated Pricing

Qty Low High
1+ $2.94 $2.94

Estimated market price range - modelled values for guidance only, not live distributor offers.

PS22A76 Features

  • 1200V collector-emitter voltage rating.
  • 25A continuous collector current.
  • Integrated drive and protection circuits.
  • Through Hole mounting type.
  • UL Recognized component.

PS22A76 Applications

  • Suitable for AC 400V class motor control.
  • Used in home appliance inverters.
  • Designed for 3-phase inverter systems.
  • Applicable for fan and pump drives.

PS22A76 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage for the PS22A76?

The maximum collector-emitter voltage (VCES) for the PS22A76 is 1200V.

What is the continuous collector current rating?

The continuous collector current (IC) rating for the PS22A76 is 25A at a case temperature of 25°C.

What type of package does the PS22A76 use?

The PS22A76 is supplied in a 42-PowerDip Module (1.404", 35.67mm) package.

How is the PS22A76 mounted?

The PS22A76 is designed for Through Hole mounting.

What is the maximum operating junction temperature?

The maximum operating junction temperature (Tj) for the PS22A76 is 150°C.

What is the isolation voltage rating?

The isolation voltage (Viso) for the PS22A76 is 2500Vrms.
