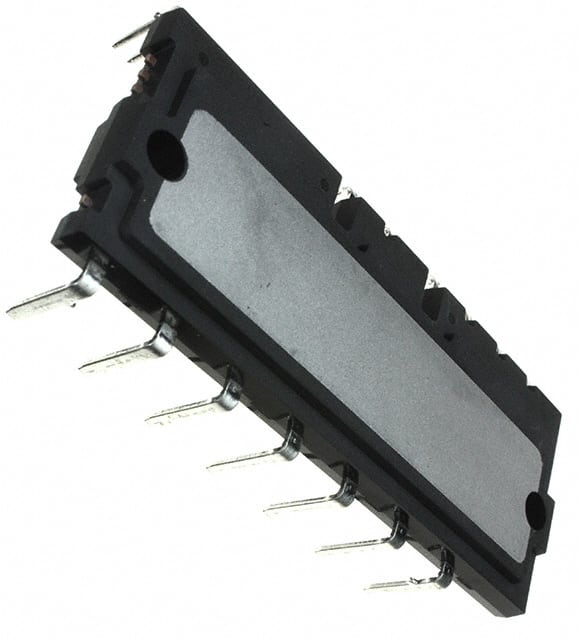

PS22A72 The Powerex Inc. PS22A72 is a 1200V, 5A Intelligent Power Module (IPM) designed for small power inverter applications. It features a large DIP package and through-hole mounting.
Mfr Part #:

PS22A72

Available from 1 distributors
Mfr Name: Powerex Inc.
Powerex Inc.
The Powerex Inc. PS22A72 is a 1200V, 5A Intelligent Power Module (IPM) designed for small power inverter applications. It features a large DIP package and through-hole mounting.
✓ Total Stock: 5 pcs
$ Price Range: $2.94

PS22A72 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PS22A72 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Mounting Type
Storage Temperature
Tape & Reel
Type
Voltage
View Similar Products (0)

PS22A72 Description

Short technical summary and product information.

The PS22A72 from Powerex Inc. is a transfer-molded Intelligent Power Module (IPM) integrated with High Voltage ICs (HVICs) for small power inverter use. This module is designed for three-phase inverter applications and operates with a Vces of 1200V and a continuous collector current (Ic) of 5A.



Key electrical specifications include an isolation voltage of 2500Vrms and a maximum junction temperature (Tj) of 150℃. The module supports a 3, 5V input interface with a Schmitt trigger receiver circuit for high active signals. It is housed in a large DIP package suitable for through-hole mounting.



Applications for this IPM include air conditioners, cloth washers, refrigerators, dishwashers, fans, and pumps. The module integrates drive circuits and under-voltage protection for both the P-side and N-side, along with short circuit protection for the N-side IGBTs. Fault signaling and temperature monitoring are also included features.

PS22A72 Quick Information

Product Type: Power Driver Module
Canonical Name: PS22A72 Intelligent Power Module
Subcategory: Intelligent Power Module

PS22A72 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PS22A72 Estimated Pricing

Qty Low High
1+ $2.94 $2.94

Estimated market price range - modelled values for guidance only, not live distributor offers.

PS22A72 Features

  • 1200V collector-emitter voltage (Vces).
  • 5A continuous collector current (Ic).
  • 2500Vrms isolation voltage rating.
  • Suitable for three-phase inverter circuits.
  • Through-hole mounting in large DIP package.

PS22A72 Applications

  • Used in air conditioning systems.
  • Applicable for washing machine drives.
  • Suitable for refrigerator power supplies.
  • Can be used in fan and pump controls.

PS22A72 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage (Vces) for the PS22A72?

The Vces for the PS22A72 is 1200V.

What is the continuous collector current (Ic) rating of the PS22A72?

The continuous collector current (Ic) rating is 5A.

What is the isolation voltage of the PS22A72?

The isolation voltage is 2500Vrms.

What is the maximum operating junction temperature (Tj) for this module?

The maximum operating junction temperature (Tj) is 150℃.

How is the PS22A72 mounted?

The PS22A72 is mounted using the through-hole method.

What package type is the PS22A72 supplied in?

The PS22A72 is supplied in a large DIP package, specifically 42-PowerDip Module (1.404", 35.67mm).
