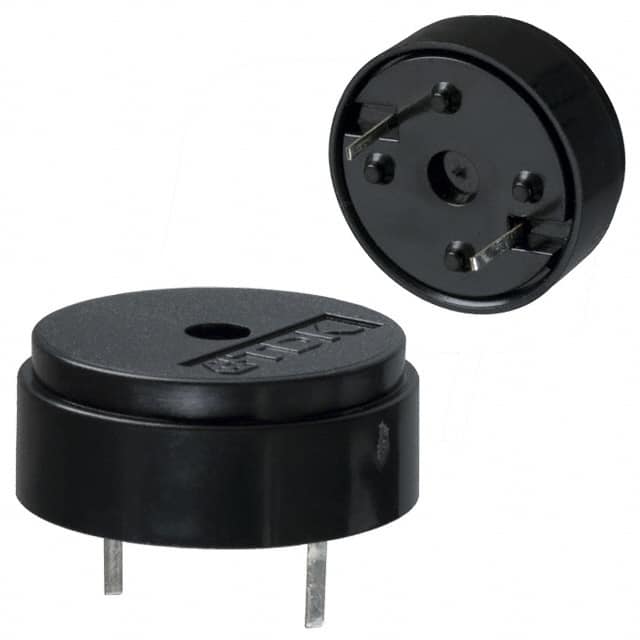

PS1740P02E PS1740P02E is a 3V piezo buzzer from TDK Corporation with a 17mm diameter, 75dB SPL at 10cm, and 4kHz resonant frequency.
Mfr Part #:

PS1740P02E

Available from 1 distributors
Mfr Name: TDK Corporation
TDK Corporation
PS1740P02E is a 3V piezo buzzer from TDK Corporation with a 17mm diameter, 75dB SPL at 10cm, and 4kHz resonant frequency.
✓ Total Stock: 4,500 pcs
$ Price Range: $0.36 - $0.96

PS1740P02E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,500 pcs
On Request
4500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PS1740P02E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Diameter
Driver Circuitry
Frequency
Height
Input Type
Lead Style
Mounting Type
Operating Mode
Operating Temperature
Port Location
Sound Pressure Level (SPL)
Tape & Reel
Technology
Termination
Termination Style
Voltage
Voltage Range
View Similar Products (0)

PS1740P02E Description

Short technical summary and product information.

The PS1740P02E is a piezo buzzer from TDK Corporation designed for audible indication applications. It operates at a nominal voltage of 3V with a maximum voltage rating of 30V. The buzzer produces a sound pressure level of 75dB when measured at 10cm with a 3V input. Its resonant frequency is 4kHz, and it operates in single tone mode.



The buzzer features a 17mm diameter and 7.80mm height, with a top port location for sound output. It is a through-hole component with PC pin termination, making it suitable for PCB mounting. The driver circuitry is externally driven, requiring a zero-peak signal input.



The operating temperature range is -10°C to 70°C, allowing use in a variety of environments. This component is RoHS3 compliant and has an MSL of 1 (unlimited).

PS1740P02E Quick Information

Product Type: Piezo Buzzer
Series: PS
Canonical Name: PS1740P02E Piezo Buzzer
Subcategory: Alarms, Buzzers, and Sirens

PS1740P02E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PS1740P02E Estimated Pricing

Qty Low High
1+ $0.96 $0.96
10+ $0.60 $0.60
100+ $0.48 $0.48
500+ $0.47 $0.47
1,000+ $0.42 $0.42
1,500+ $0.42 $0.42
24,000+ $0.36 $0.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

PS1740P02E Features

  • Piezo technology with 4kHz resonant frequency.
  • 75dB sound pressure level at 3V, 10cm.
  • 17mm diameter through-hole package.
  • Externally driven transducer with PC pins.
  • RoHS3 compliant with MSL 1 unlimited.

PS1740P02E Applications

  • Audible alerts in electronic devices.
  • Indicator tones in consumer electronics.
  • Warning signals in industrial equipment.

PS1740P02E FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the PS1740P02E?

The nominal operating voltage is 3V, with a maximum voltage of 30V.

What is the sound output level of this buzzer?

The sound pressure level is 75dB at 3V measured at 10cm.

What is the resonant frequency of the PS1740P02E?

The resonant frequency is 4kHz.

What is the mounting type for this buzzer?

It is a through-hole component with PC pin termination.

What is the operating temperature range?

The operating temperature range is -10°C to 70°C.
