| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

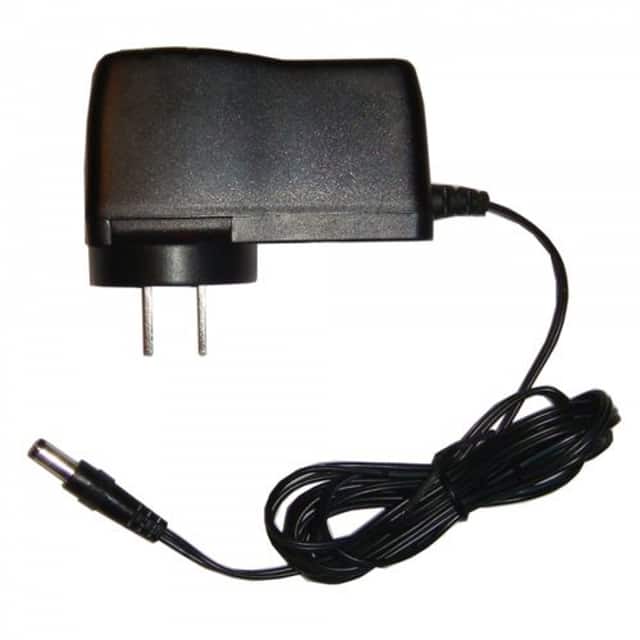

This Tycon Systems Inc. PS15V is an AC/DC wall mount adapter designed for commercial ITE applications. It delivers a stable 15V output with a current rating of 900mA, providing a total power of 14W. The adapter operates with 78% efficiency and features a NEMA 1-15P input connector suitable for North American outlets.
The output is delivered via a standard 2.1mm inner diameter by 5.5mm outer diameter barrel plug, with a positive center polarization. The unit is a Class II wall mount type, measuring 73.7mm in length, 41.9mm in width, and 30.5mm in height. Its operating temperature range is from -10°C to 40°C. The cord length is 70.9 inches (1.80m).
This power supply is suitable for various electronic devices requiring a regulated 15V DC input. Its compact size and wall-mount form factor make it convenient for desktop and embedded applications.
The output voltage is 15V.
The maximum current output is 900mA.
The power rating is 14W.
The operating temperature range is -10°C to 40°C.
It uses a NEMA 1-15P input connector.
The dimensions are 73.7mm in length, 41.9mm in width, and 30.5mm in height.
