| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

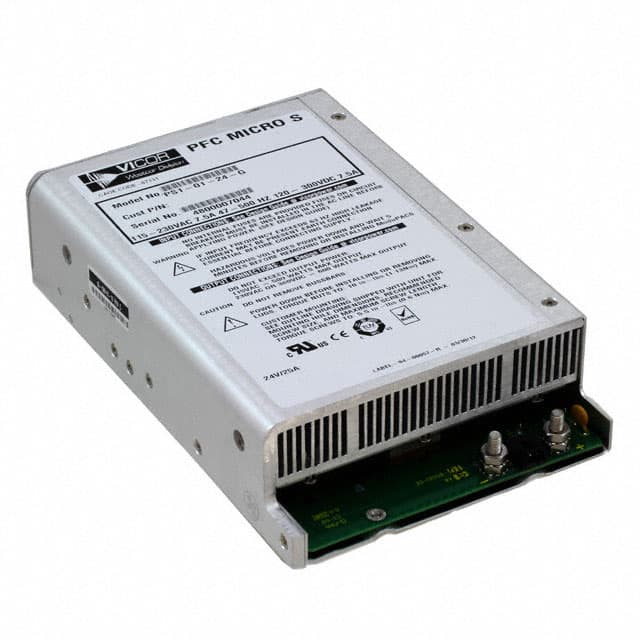

The Vicor PS1-01-24-G is an enclosed AC/DC converter designed for demanding applications. It provides a robust 600W of power with a 25A current output, suitable for ITE (Commercial) and Medical use.
This converter features a chassis mount design for secure installation. Key features include adjustable output, DC input capability, Power Factor Correction (PFC), remote sense, and a standby output. It operates within a temperature range of -20°C to 65°C with derating.
The unit is CE approved and offers a universal input voltage range. Its dimensions are 201.9mm in length, 89.9mm in width, and 47.3mm in height.
The PS1-01-24-G provides a single output of 24V at 25A.
The converter is rated for 600W.
The operating temperature range is -20°C to 65°C with derating.
It uses chassis mount packaging.
The dimensions are 201.9mm (length) x 89.9mm (width) x 47.3mm (height).
It is suitable for ITE (Commercial) and Medical applications.
