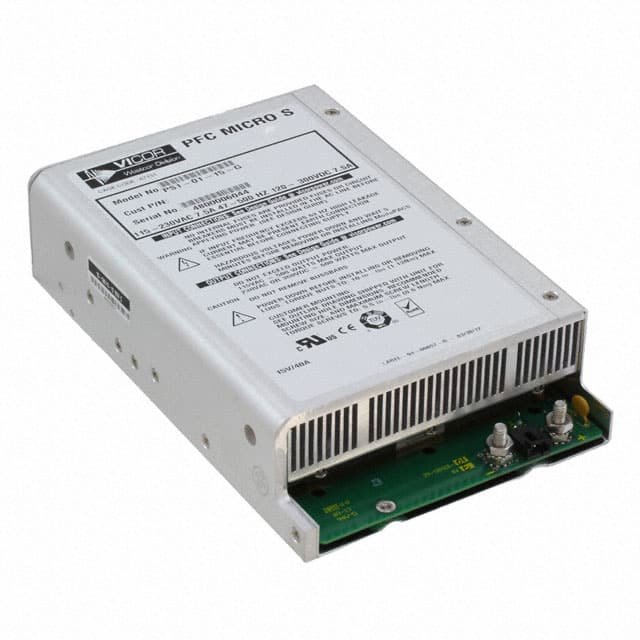

The Vicor PS1-01-15-G is an enclosed AC/DC converter designed for commercial and medical applications. It provides a power output of 600W and a single output voltage of 15V.
Key electrical specifications include a universal input voltage range of 90-264 VAC, a high isolation voltage of 4 kV, and a current rating of 40A for the primary output. The converter incorporates features such as Power Factor Correction (PFC), remote sense, and a standby output, enhancing its utility in various systems.
Mechanically, this unit is designed for chassis mounting, with dimensions of 201.9mm in length, 89.9mm in width, and 47.3mm in height. The operating temperature range is -20°C to 65°C with derating, making it suitable for demanding environments. Compliance includes CE approval.
90 to 264 VAC (also 120 to 370 VDC).
15V.
600W.
-20°C to 65°C with derating.
Enclosed, chassis mount.
Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input.
201.9mm x 89.9mm x 47.3mm.
