| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

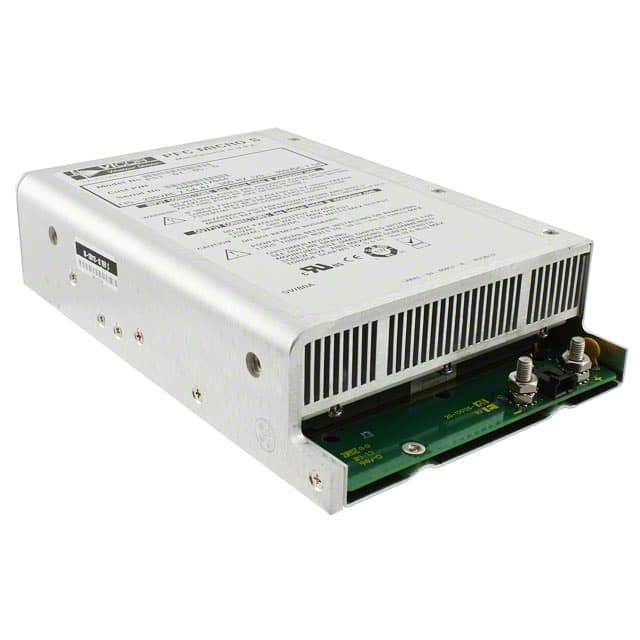

The Vicor PS1-01-05-G is an enclosed AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a single 5V output with a maximum current of 80A, delivering a total power of 400W. The converter accepts a universal input voltage range of 85 to 264 VAC.
Key electrical specifications include an isolation voltage of 4.242kV and features such as adjustable output, DC input capability, Power Factor Correction (PFC), remote sense, and a standby output. The operating temperature range is -20°C to 65°C with derating.
Mechanically, this unit is designed for chassis mounting and has dimensions of 201.9mm in length, 89.9mm in width, and 47.3mm in height. It is CE approved, indicating compliance with relevant European safety standards. The PS1-01-05-G is part of the PFC MicroS™ series.
85 to 264 VAC.
Chassis mount, enclosed.
-20°C to 65°C with derating.
5V.
80A.
400W.
CE.
