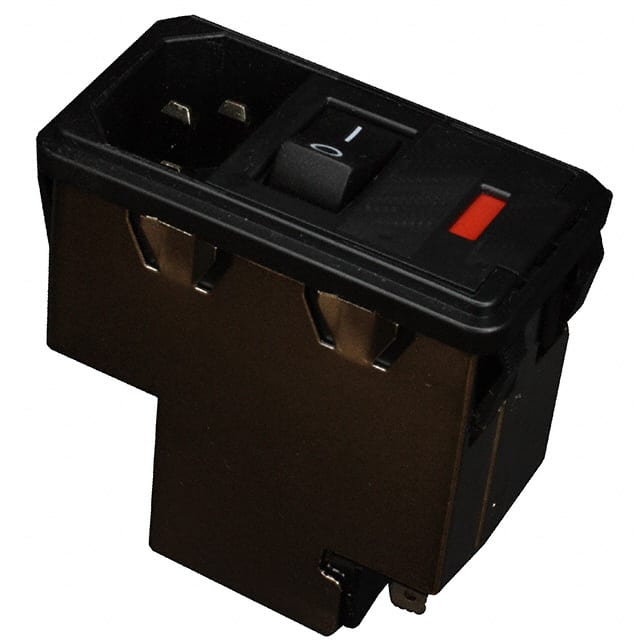

PS0S0SSXB This TE Connectivity PS0S0SSXB is a filtered power entry module with an IEC 320-C14 receptacle, rated 10A at 120VAC. It features a panel mount snap-in design, quick connect terminals, an on-off switch, and a fuse holder.
Mfr Part #:

PS0S0SSXB

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
This TE Connectivity PS0S0SSXB is a filtered power entry module with an IEC 320-C14 receptacle, rated 10A at 120VAC. It features a panel mount snap-in design, quick connect terminals, an on-off switch, and a fuse holder.
✓ Total Stock: 250 pcs
$ Price Range: $34.08 - $42.77

PS0S0SSXB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PS0S0SSXB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accomodates a Fuse
Approval Agency
Connector Style
Connector Type
Current Rating
Features
Filter Type
Fuse Holder, Drawer
Mounting Type
Number of Positions
Panel Cutout Dimensions
Panel Thickness
Switch Features
Termination
Voltage Rating
View Similar Products (0)

PS0S0SSXB Description

Short technical summary and product information.

The TE Connectivity PS0S0SSXB is a power entry module (PEM) designed for commercial EMI and RFI filtering applications. It integrates a male blade receptacle conforming to IEC 320-C14 with a 3-position (line, neutral, ground) configuration.



Electrical ratings are 10A at 120VAC. The module includes an on-off switch and a built-in fuse holder (fuse not included). The termination uses quick connect tabs sized 0.187 inches (4.7mm).



Mechanically, it mounts to a panel using a snap-in method, accommodating panel thicknesses from 0.031 to 0.114 inches (0.79mm to 2.90mm). The unit is shielded and includes a conversion clip feature. The module has been certified by CSA, UL, and VDE approval agencies.

PS0S0SSXB Quick Information

Product Type: Power Entry Module
Canonical Name: TE Connectivity PS0S0SSXB Power Entry Module, IEC 320-C14, Filtered, with Fuse Holder and Switch
Subcategory: Filtered Power Entry Module

PS0S0SSXB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PS0S0SSXB Estimated Pricing

Qty Low High
1+ $42.77 $42.77
10+ $36.36 $36.36
25+ $34.08 $34.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

PS0S0SSXB Features

  • IEC 320-C14 male blade receptacle connector.
  • Integrated EMI and RFI commercial filter.
  • Built-in on-off switch and fuse holder.
  • Panel mount snap-in installation method.
  • Quick connect 0.187 inch termination style.

PS0S0SSXB Applications

  • Used in commercial power supply input circuits.
  • Suitable for test and measurement equipment.
  • Applied in industrial control panel power entry.

PS0S0SSXB FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the PS0S0SSXB?

The current rating is 10A.

What is the voltage rating of this power entry module?

The voltage rating is 120VAC.

What type of mounting does the PS0S0SSXB use?

It uses panel mount with snap-in installation.

Does this module include a switch and fuse holder?

Yes, it includes an on-off switch and a fuse holder (fuse not included).

What is the connector style of the PS0S0SSXB?

The connector style is IEC 320-C14.
