The Skyworks Solutions PS088-315 is a voltage controlled phase shifter operating across a wide frequency range of 700 to 1100 MHz. This device is specifically optimized for use as a wide dynamic range, low distortion phase shifter, centered at 849 to 869 MHz.
Key features include a phase shift range of 85 to 105 degrees, an insertion loss variation of 1.5 dB, and a typical IP3 of +33 dBm at 900 MHz. The device requires no external components and operates with a control voltage range of 0 to 12 V, drawing a maximum of 1 μA control current.

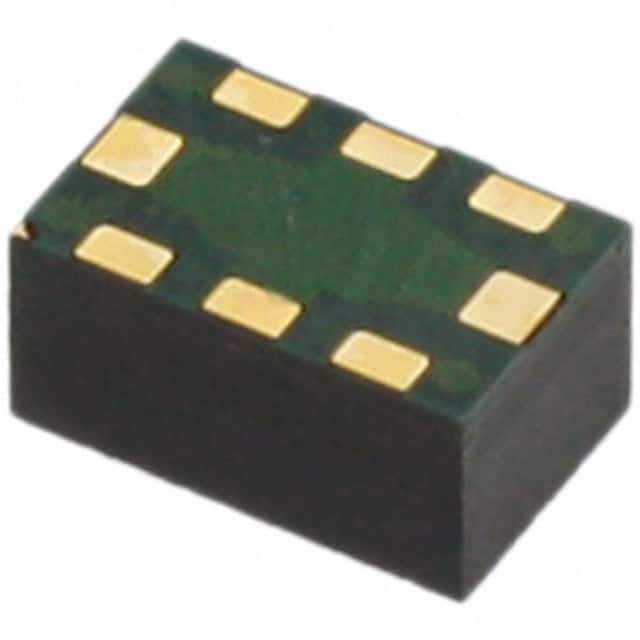

The PS088-315 is housed in a small 8-pin MCM (3.2x4.9 mm) package, suitable for surface mount applications. It is designed for applications such as amplifier linearization, I/Q modulators/demodulators, and vector modulators.
| Qty | Low | High |
|---|---|---|
| 1+ | $44.15 | $44.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PS088-315 operates from 700 to 1100 MHz.
The phase shift range is 85 to 105 degrees.
The control voltage range is 0 to 12 V.
The typical IP3 is +33 dBm at 900 MHz.
The PS088-315 is in an 8-pin MCM package.
The mounting type is Surface Mount.
