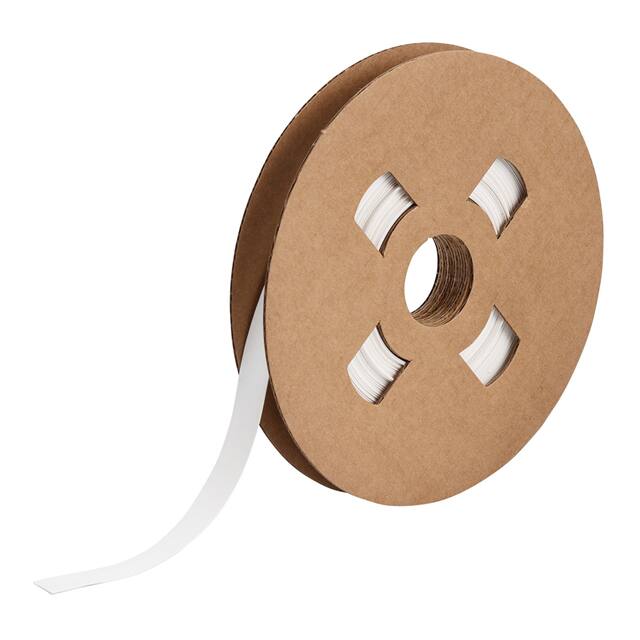

PS-C-750-WT Brady PS-C-750-WT is a white heat shrinkable label made from irradiated polyolefin. It features a 3:1 shrink ratio and is suitable for thermal transfer and dot matrix printing.
Mfr Part #:

PS-C-750-WT

Available from 1 distributors
Mfr Name: Brady Corporation
Brady Corporation
Brady PS-C-750-WT is a white heat shrinkable label made from irradiated polyolefin. It features a 3:1 shrink ratio and is suitable for thermal transfer and dot matrix printing.
✓ Total Stock: 32 pcs
$ Price Range: $242.99

PS-C-750-WT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
32 pcs
On Request
32 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PS-C-750-WT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Industrial Grade
Label Size
Label Type
Material
Mounting Type
Operating Temperature
View Similar Products (0)

PS-C-750-WT Description

Short technical summary and product information.

The Brady PS-C-750-WT is a heat shrinkable label from the PermaSleeve series, designed for wire identification and insulation. It is made from irradiated polyolefin tubing with a 3:1 shrink ratio, allowing it to conform to a range of cable diameters from 0.25 in to 0.70 in (6.4 mm to 17.8 mm). The label has a white color and measures 0.75 in (19.1 mm) in width with an inner diameter of 0.60 in (15.2 mm) after shrinking.



This marker is qualified to SAE AS23053/5 Class 4 and is a UL224 Recognized Component (File E333786). It operates over a temperature range of -55°C to 135°C, with a minimum recovery temperature of 150°C. The material exhibits low flame spread (ASTM E162 index of 5) and low smoke density in nonflaming mode.



The PS-C-750-WT is compatible with thermal transfer and dot matrix printing technologies, and can also be laser marked. It is recommended for use with Brady Series R6600, R4300, R4502S, and R6700 ribbons for optimal print quality and durability. The marker meets mark permanence requirements of AS-81531 and AS-5942 when printed with specified ribbons.



Mounting is via heat shrink application. The label is available in white and other colors. This part is commonly used in aerospace, military, and industrial applications requiring reliable wire identification.

PS-C-750-WT Quick Information

Product Type: Heat Shrink Label
Series: B-342
Canonical Name: Brady PS-C-750-WT PermaSleeve Heat Shrink Marker, White, 0.75 in Width
Subcategory: Wire Identification Markers

PS-C-750-WT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PS-C-750-WT Estimated Pricing

Qty Low High
1+ $242.99 $242.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

PS-C-750-WT Features

  • White heat shrink marker with 3:1 shrink ratio.
  • Made from irradiated polyolefin material.
  • Operates from -55°C to 135°C.
  • Compatible with thermal transfer and dot matrix printing.
  • UL224 recognized and SAE AS23053/5 qualified.

PS-C-750-WT Applications

  • Ideal for wire identification in aerospace applications.
  • Used for cable insulation and marking in industrial equipment.
  • Suitable for military and defense wire marking.
  • Applicable in automotive wiring harness identification.

PS-C-750-WT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the PS-C-750-WT?

The operating temperature range is -55°C to 135°C.

Is the PS-C-750-WT RoHS compliant?

The RoHS status is listed as RoHS3 Compliant, but this is unverified and low confidence.

What is the shrink ratio of this heat shrink marker?

The shrink ratio is 3:1.

What materials is the PS-C-750-WT made from?

It is made from irradiated polyolefin.

What printing technologies are compatible with this marker?

Thermal transfer and dot matrix printing are supported; laser marking is also possible.

What is the minimum recovery temperature?

The minimum recovery temperature is 150°C.

What cable diameter range does this marker fit?

It fits cables with outer diameter from 0.25 in to 0.70 in (6.4 mm to 17.8 mm).
