| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

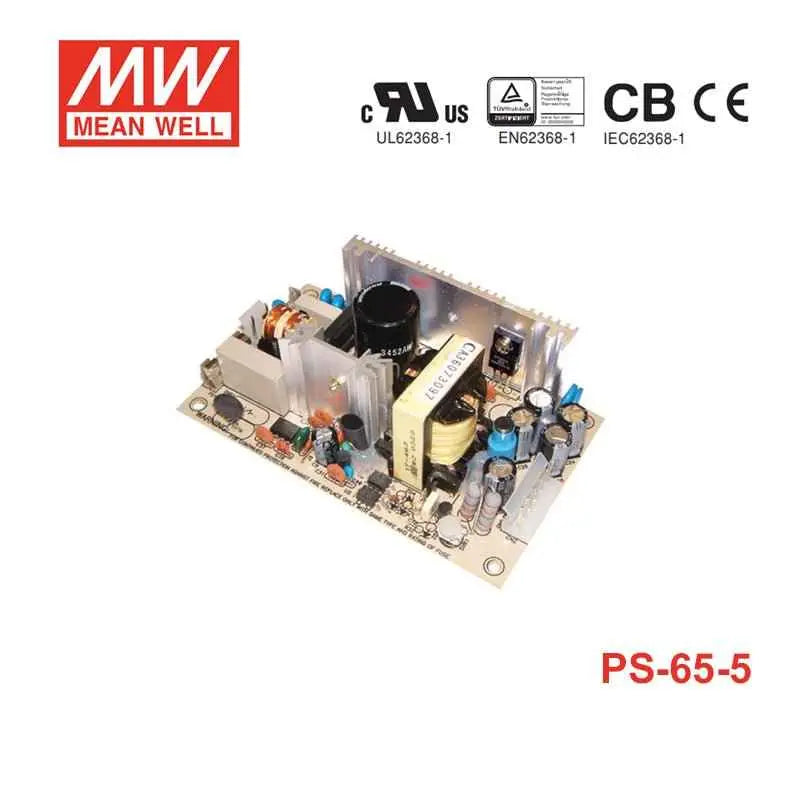

The Mean Well USA PS-65-5 is an open-frame AC/DC converter designed for ITE (Commercial) applications. It provides a stable 5V output voltage with a rated current of 12A, delivering a total power of 60W.
This converter features a universal AC input range of 90-264VAC and operates within a frequency range of 47-440Hz. It boasts an efficiency of 76% and includes essential protections such as short circuit, overload, and over voltage, all employing a hiccup mode that recovers automatically after the fault condition is removed. The operating temperature range is -10°C to 60°C.
With dimensions of 127.0mm x 76.0mm x 42.0mm, the PS-65-5 is suitable for chassis mounting. It also features a withstand voltage of 3KVAC and an isolation resistance of 100M Ohms / 500VDC, ensuring reliable operation. The MTBF is rated at a minimum of 300.7K hours.
The PS-65-5 has an output voltage of 5V.
The rated current for the PS-65-5 is 12A.
The PS-65-5 has a power rating of 60W.
The PS-65-5 accepts an input voltage range of 90-264VAC.
The operating temperature range for the PS-65-5 is -10°C to 60°C.
Overload protection on the PS-65-5 is handled by a hiccup mode, which recovers automatically after the fault condition is removed.
The dimensions of the PS-65-5 are 127.0mm x 76.0mm x 42.0mm.
