| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Country of Origin | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Power Rating | |
| Type | |
| Voltage | |
| Weight | |
| Width |

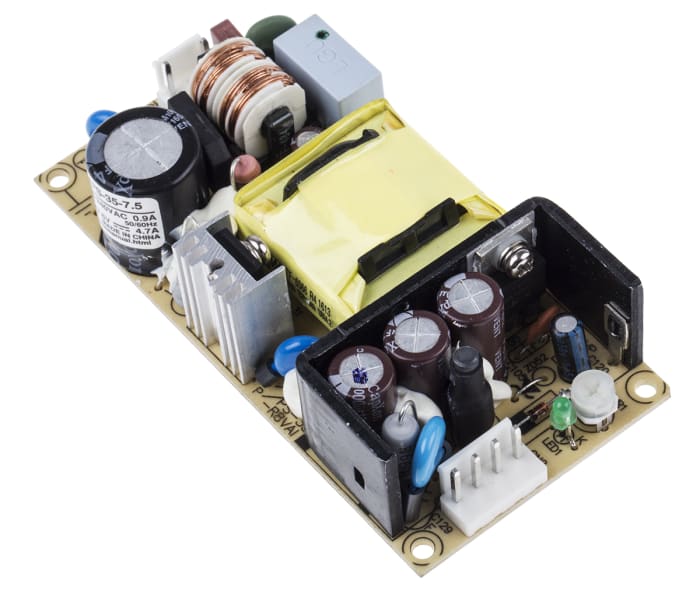

The Mean Well PS-35-7.5 is a versatile switching power supply designed for various applications. It delivers a stable 7.5V DC output at a maximum current of 4.7A, providing a total power rating of 35W. This unit is built with a universal input voltage range, accepting 90-264V AC and 127-370V DC, making it suitable for global use.
The PS-35-7.5 features an open frame package and chassis mount type, facilitating easy integration into systems. Its compact dimensions of 101.6mm x 50.8mm x 24.0mm contribute to its high power density. The power supply operates efficiently with an 80% efficiency rating and is designed for a wide operating temperature range from -20°C to +65°C.
Key electrical specifications include a 3kV voltage rating and it is suitable for ITE (Commercial) applications. Compliance certifications include CB, CE, cURus, and TUV, ensuring reliability and safety. The unit also offers adjustable output and universal input features, enhancing its flexibility for different design requirements.
The output voltage is 7.5V dc.
The maximum output current is 4.7A.
The power rating is 35W.
It has 1 output.
The input voltage range is 90-264V ac and 127-370V dc.
It uses chassis mount.
The operating temperature range is -20°C to +65°C.
