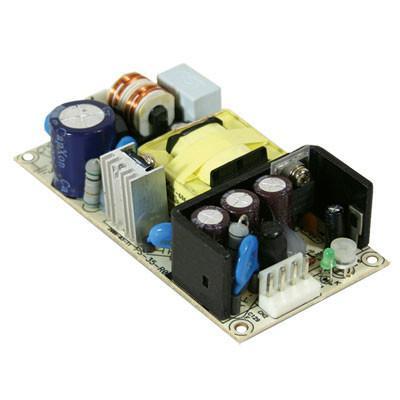

The Mean Well USA PS-35-24 is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 36W and a current of 1.5A at 24V.
This converter features adjustable output and universal input, with an efficiency of 85%. It is designed for chassis mounting and operates within a temperature range of -20°C to 65°C with derating. The dimensions are 101.6mm x 50.8mm x 24.0mm.
Key specifications include a 3 kV voltage rating and compliance with CB, CE, cURus, and TUV approval agencies. It has a single output and is suitable for various industrial applications requiring a reliable power supply.
The PS-35-24 is a chassis mount open frame converter with dimensions 101.6mm x 50.8mm x 24.0mm.
The operating temperature range is -20°C to 65°C with derating.
The efficiency is 85%.
The output current is 1.5A.
The power rating is 36W.
It has a single output.
It is approved by CB, CE, cURus, and TUV.
