| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

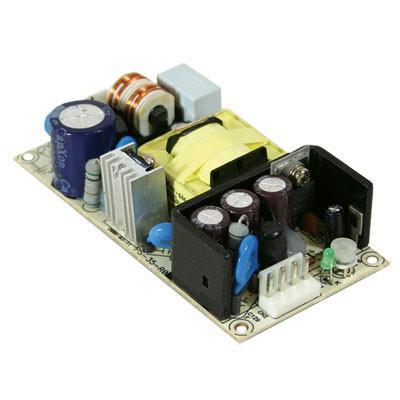

The Mean Well USA PS-35-13.5 is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a single output with a power rating of 35W and an output current of 2.6A.
Key electrical specifications include a universal input and an adjustable output feature. The converter operates efficiently with an 81% efficiency rating. It is designed for chassis mount installation and has dimensions of 101.6mm x 50.8mm x 24.0mm.
The operating temperature range is -20°C to 65°C with derating. The unit also features 3kV isolation voltage. Compliance includes CB, CE, cURus, and TUV approvals.
The operating temperature range is -20°C to 65°C with derating.
It is an open frame type converter.
The efficiency is 81%.
The isolation voltage is 3kV.
It has a single output.
It is approved by CB, CE, cURus, and TUV.
It is chassis mountable.
