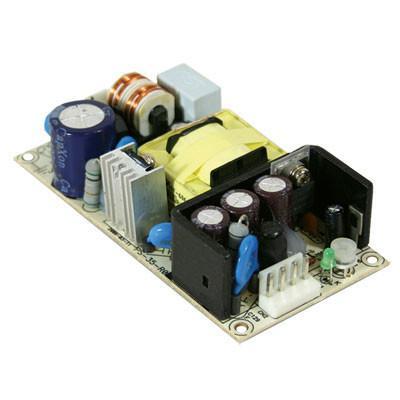

The Mean Well USA PS-35-12 is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 36W and a single output voltage.
Key electrical specifications include an efficiency of 81% and a current rating of 3A. The converter features adjustable output and universal input, making it versatile for various power needs.
With a chassis mount type, the PS-35-12 has dimensions of 101.6mm in length, 50.8mm in width, and 24.0mm in height. It operates within a temperature range of -20°C to 65°C with derating.
This unit is approved by CB, CE, cURus, and TUV, indicating compliance with various safety and performance standards. It is RoHS3 compliant and has an MSL of 1.
-20°C to 65°C with derating.
12V DC at 3A (36W).
81%.
CB, CE, cURus, TUV.
101.6mm x 50.8mm x 24.0mm (4.00" x 2.00" x 0.94").
Chassis mount.
3 kV.
