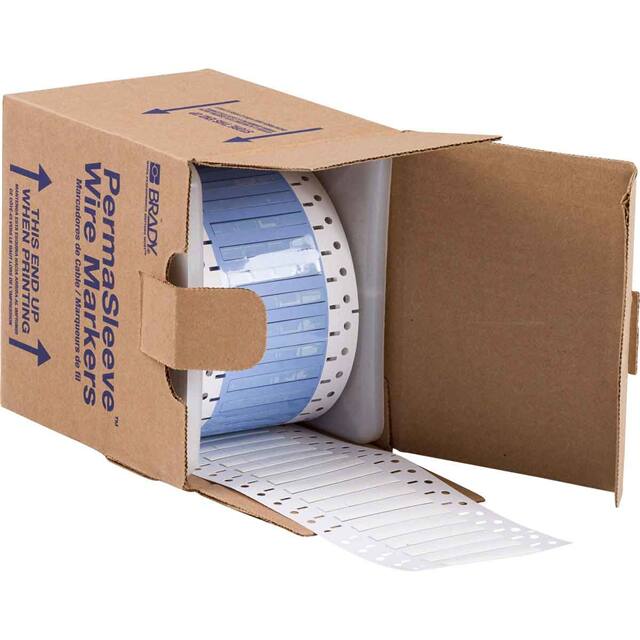

PS-125-2-WT-S-4 White heat shrinkable label from Brady, part PS-125-2-WT-S-4. It has a 0.50" width and 0.13" diameter, made of polyolefin with a 3:1 shrink ratio, and operates from -55°C to +135°C.
Mfr Part #:

PS-125-2-WT-S-4

Available from 1 distributors
Mfr Name: Brady Corporation
Brady Corporation
White heat shrinkable label from Brady, part PS-125-2-WT-S-4. It has a 0.50" width and 0.13" diameter, made of polyolefin with a 3:1 shrink ratio, and operates from -55°C to +135°C.
✓ Total Stock: 21,000 pcs
$ Price Range: $392.99

PS-125-2-WT-S-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
21,000 pcs
On Request
21000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PS-125-2-WT-S-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Halogen Free
Industrial Grade
Label Size
Label Type
Material
Medical Grade
Military Grade
Operating Temperature Range
SVHC Present
View Similar Products (0)

PS-125-2-WT-S-4 Description

Short technical summary and product information.

The Brady PS-125-2-WT-S-4 is a white heat shrinkable label from the PermaSleeve series, made of irradiated polyolefin heat shrink tubing with a 3:1 shrink ratio. It accommodates cable outer diameters from 0.05" to 0.11" (1.2mm to 2.8mm) and has a label size of 0.50" width by 0.13" diameter (12.7mm x 3.2mm).



This label is designed for thermal transfer and dot matrix printing, with a minimum recovery temperature of 150°C. It has an operating temperature range of -55°C to +135°C. The material qualifies to SAE AS23053/5 (Class 4).



Designed for wire identification and insulation purposes, this label meets the mark permanence requirements of AS-81531 and AS-5942 when printed with compatible Brady ribbons. It has a UL recognition as a UL224 Extruded Insulated Tubing component (UL file E333786).

PS-125-2-WT-S-4 Quick Information

Product Type: Heat Shrinkable Label
Series: B-342
Canonical Name: Brady Corporation B-342 PermaSleeve Heat Shrinkable Label, White, 0.50"W x 0.13"Dia
Subcategory: Labels, Labeling

PS-125-2-WT-S-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

PS-125-2-WT-S-4 Estimated Pricing

Qty Low High
1+ $392.99 $392.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

PS-125-2-WT-S-4 Features

  • White heat shrinkable wire marker.
  • Polyolefin material with 3:1 shrink ratio.
  • Operates from -55°C to +135°C.
  • Supports thermal transfer and dot matrix print.
  • Qualified to SAE AS23053/5 Class 4.

PS-125-2-WT-S-4 Applications

  • Used for wire identification and insulation.
  • Suitable for aerospace and military wire marking.
  • Ideal for high-reliability electronic assemblies.
  • Meets mark permanence per AS-81531 and AS-5942.

PS-125-2-WT-S-4 FAQs

6 frequently asked questions generated from this part’s specifications.
What material is the PS-125-2-WT-S-4 made of?

Irradiated polyolefin heat shrink tubing (3:1 shrink ratio).

What is the operating temperature range?

-55°C to +135°C.

What print technologies are compatible with this label?

Thermal transfer and dot matrix printing.

What is the shrink ratio of the PS-125-2-WT-S-4?

3:1.

What is the minimum recovery temperature?

150°C.

Is the PS-125-2-WT-S-4 RoHS compliant?

The RoHS status is unverified but is reported as RoHS3 Compliant. Verify on the manufacturer's website (www.bradyid.com/weee-rohs).
