| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

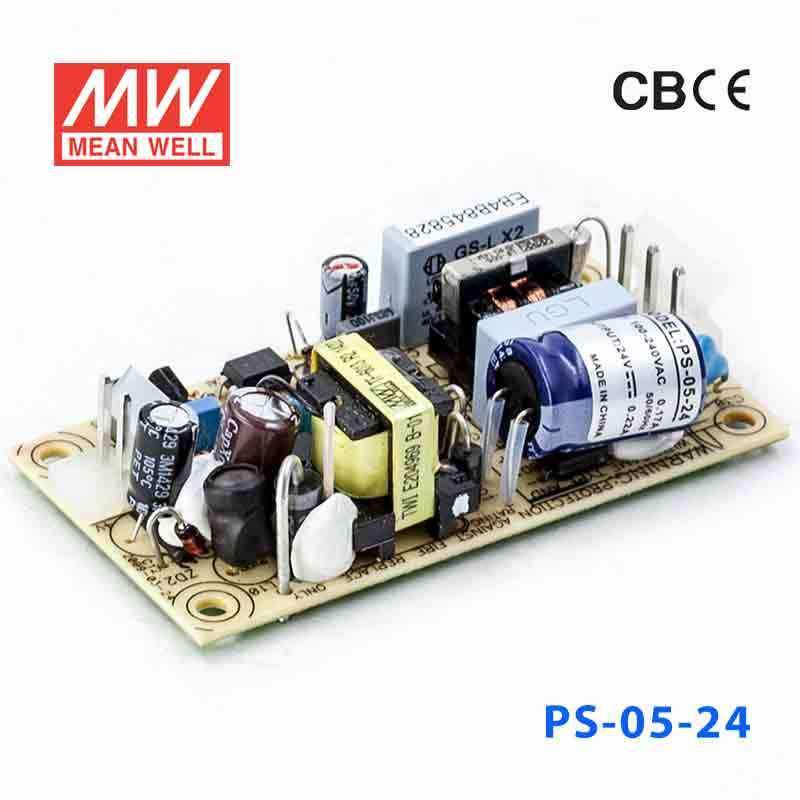

The Mean Well PS-05-24 is a versatile 5W AC to DC power supply designed for various applications. It operates with a universal input voltage range of 85~264VAC and provides a stable 24VDC output at 220mA.
Key electrical specifications include a power rating of 5.28W and an efficiency of 76%. The unit offers 3KVAC I/O isolation for enhanced safety and protection against overload, over voltage, and over temperature.
Designed with an open frame construction, the PS-05-24 is suitable for chassis mounting. Its compact dimensions of 75.0mm x 40.0mm x 20.0mm make it ideal for space-constrained applications. The operating temperature range is -10°C to 60°C with derating.
This power supply is suitable for ITE (Commercial) applications and meets safety approvals including CB and CE. It is a reliable choice for embedded systems and automation electronics requiring a constant voltage 24VDC source.
The output voltage is 24V.
The maximum output current is 220mA.
The power rating is 5.28 Watt.
The input voltage range is 85~264VAC.
The operating temperature range is -10°C to 60°C with derating.
It supports chassis mount.
Yes, it includes protections for overload, over voltage, and over temperature.
