Mfr Part #:

PRT-09749

Name: PRT-09749
Brand: SparkFun Electronics
SKU: PRT-09749

Description:

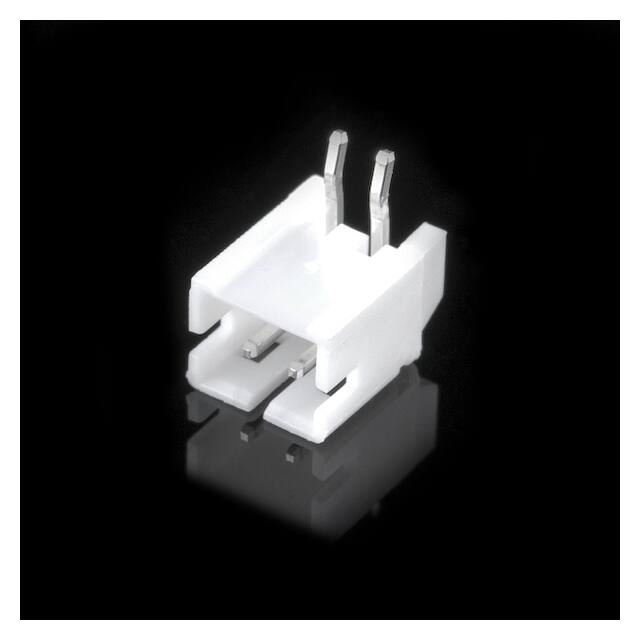

CONN HEADER RIGHT-ANGLE - THROUG

Stock on Request

PRT-09749 Description

Short technical summary and product information.

CONN HEADER RIGHT-ANGLE - THROUG

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	SparkFun Electronics
Connector Type	Header
Contact Finish	Tin
Contact Length	0.134" (3.40mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1A
Fastening Type	Detent Lock
Insulation Color	White
Insulation Height	0.197" (5.00mm)
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-25°C ~ 85°C
Pitch	0.079" (2.00mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	100VAC/DC
