| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination |

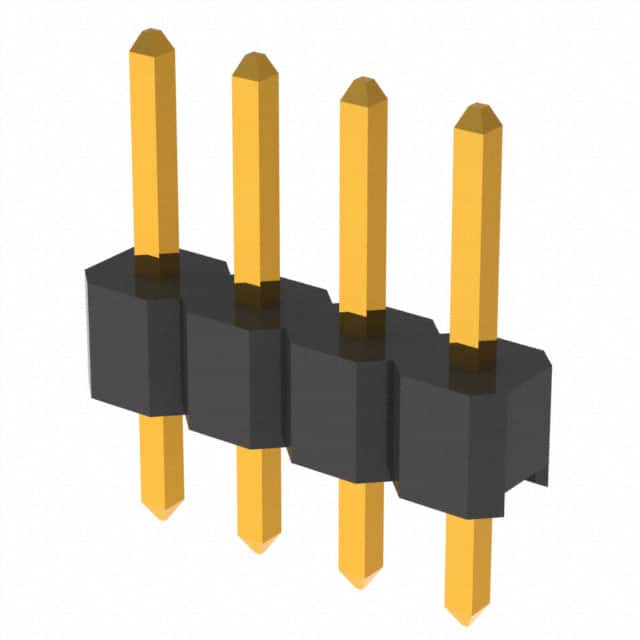

PRPC004SAAN-RC is a 4-position single row male pin header manufactured by Sullins Connector Solutions. It features a 2.54mm (0.100") pitch and through hole mounting for soldered connections. The connector is unshrouded with a push-pull fastening type, designed for board-to-board or cable applications. The insulator is made of black UL94 V-0 rated polybutylene terephthalate (PBT), ensuring flame retardancy.
The square brass contacts are gold plated (flash), providing reliable electrical performance with a contact resistance of 20 mΩ maximum. Each contact is rated for up to 3A of current. The insulation resistance is 5000 MΩ minimum, and the dielectric withstanding voltage is 1000 VAC. The connector operates over a temperature range of -40°C to 105°C.
With an insulation height of 2.50mm and overall contact length of 11.39mm, this header is suitable for compact PCB layouts. The contact length is 5.84mm, and all 4 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
| 10+ | $0.32 | $0.32 |
| 100+ | $0.27 | $0.27 |
| 500+ | $0.25 | $0.25 |
| 1,000+ | $0.23 | $0.23 |
| 5,000+ | $0.21 | $0.21 |
| 10,000+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
2.54mm (0.100")
3A per contact.
Through hole.
-40°C to 105°C.
20 mΩ maximum.
Yes, it is RoHS3 compliant per the datasheet.
