| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,798 pcs
|
7798 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,798 pcs
|
7798 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

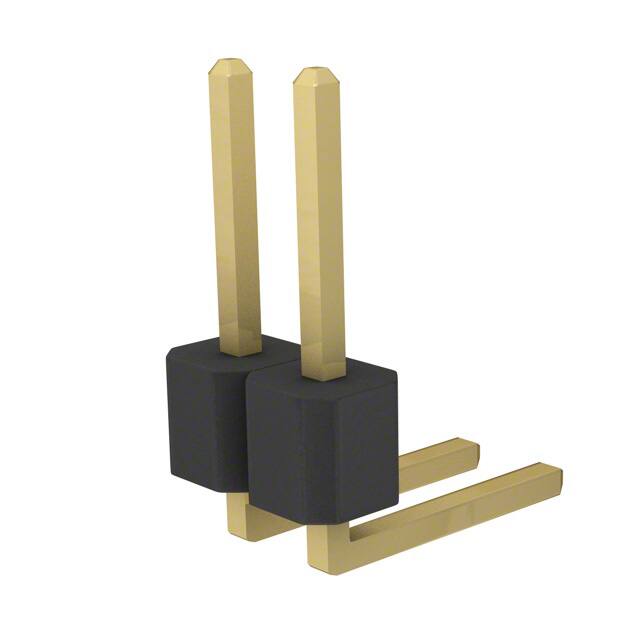

The PRPC002SBBN-M71RC is a 2-position, 2.54mm pitch right angle header from Sullins Connector Solutions. It features an unshrouded design with male square pins, making it suitable for board-to-board or cable connections. The through-hole mounting with right angle orientation allows for space-saving PCB layouts.
Key specifications include a 3A current rating per contact, 20 mΩ maximum contact resistance, and 5000 MΩ minimum insulation resistance. The dielectric withstanding voltage is 1000 VAC. The operating temperature range is -40°C to 105°C. Contacts are made of brass with gold flash plating, and the insulator is black polybutylene terephthalate (PBT) with UL94 V-0 flammability rating.
This connector is RoHS compliant and suitable for a variety of interconnection applications. The push-pull fastening type ensures secure mating. With a mating contact length of 5.84mm and insulation height of 2.50mm, it provides reliable electrical contact. The right angle design is ideal for applications where vertical space is limited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
| 10+ | $0.31 | $0.31 |
| 100+ | $0.26 | $0.26 |
| 500+ | $0.23 | $0.23 |
| 1,000+ | $0.22 | $0.22 |
| 5,000+ | $0.20 | $0.20 |
| 10,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions in a single row.
The pitch is 2.54mm (0.100 inches).
The maximum current rating is 3A per contact.
Through hole, right angle.
Brass contacts with gold flash plating.
Yes, it is RoHS compliant.
-40°C to 105°C.
