| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,358 pcs
|
6358 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Rating (Current) | |
| Contact Resistance | |
| Features | |
| Insulation Resistance | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Release Time | |
| Switching Voltage | |
| Tape & Reel | |
| Termination Style |

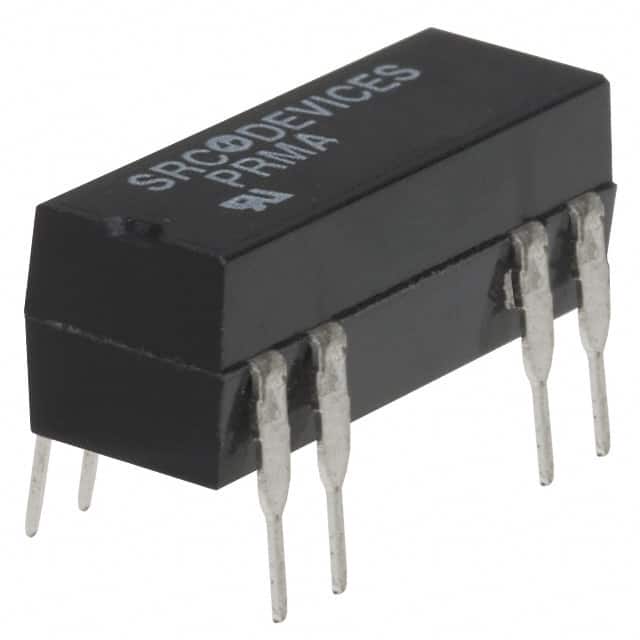

The Coto Technology PRMA1A05B is a reed relay from the DIP 14 Series, designed for reliable switching applications. It operates with a 5VDC non-latching coil and offers a SPST-NO (1 Form A) contact configuration.
This relay is rated for a maximum switching voltage of 200VDC and a switching current of 500mA, with a contact rating of 50W. It features a typical operate and release time of 0.5ms, a must-operate voltage of 3.75VDC, and a must-release voltage of 0.8VDC.
The PRMA1A05B is designed for through-hole mounting with a PC pin termination style. It operates within a temperature range of -40°C to 80°C. The relay also provides 4000Vac input-output isolation and has a typical contact resistance of 100mΩ.
Key electrical specifications include a coil current of 10mA, a switching frequency of 200Hz, and a life expectancy exceeding 200 million operations at signal level. It also includes a diode feature.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 5VDC.
The contact form is SPST-NO (1 Form A).
The maximum switching current is 500mA.
The maximum switching voltage is 200VDC.
The operating temperature range is -40°C to 80°C.
The RoHS status is RoHS3 Compliant.
