| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
281 pcs
|
281 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
221 pcs
|
221 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

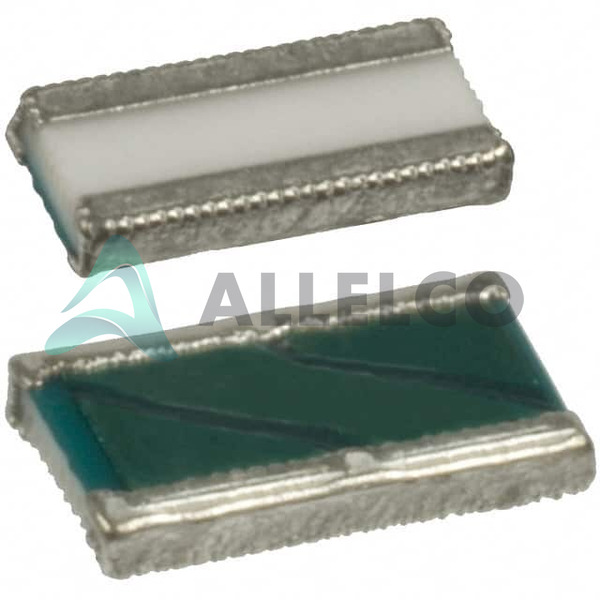

The Susumu PRL1632-R050-F-T1 is a high-performance surface mount chip resistor designed for current sensing applications. It features a low resistance value of 0.05 Ohms and a robust power rating of 1W, making it suitable for demanding environments.
This resistor boasts a tight tolerance of ±1% and a temperature coefficient of ±100ppm/°C, ensuring stable performance across a wide operating temperature range of -55°C to 125°C. The component is constructed using thin film technology and comes in a 1206 (3216 Metric) wide package.
With its compact dimensions of 1.60mm L x 3.20mm W x 0.60mm H and two terminations, the PRL1632-R050-F-T1 is designed for efficient heat dissipation and integration into various circuit designs. It is supplied in a standard tape and reel package of 5,000 units.
Key specifications include its 1W power rating, 0.05 Ohm resistance, and ±1% tolerance. The operating temperature range is -55°C to 125°C, with a temperature coefficient of ±100ppm/°C. The component is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 0.05 Ohms.
The power rating is 1W.
The tolerance is ±1%.
The operating temperature range is -55°C to 125°C.
The dimensions are 1.60mm in length and 3.20mm in width.
A reel contains 5,000 units.
