| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Insulation | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

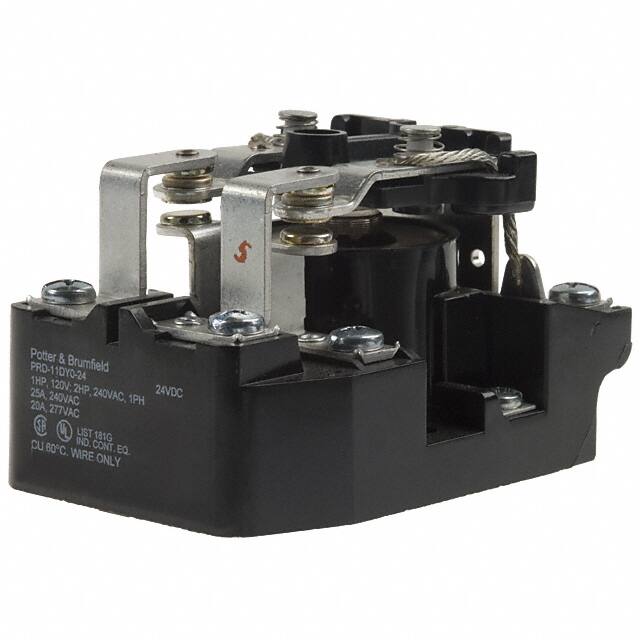

The TE Connectivity PRD-11DY0-24 is a general purpose power relay designed for robust applications. It features a DPDT (2 Form C) contact configuration, capable of switching up to 240VAC at a nominal current of 25A. The relay is driven by a 24VDC coil with a nominal current draw of 84 mA. It requires a minimum of 18VDC to operate and must release by 2.4VDC.
With a contact material of Silver (Ag), this relay is suitable for various switching tasks. It operates within a temperature range of -55°C to 80°C. The relay is designed for chassis mounting and utilizes screw terminals for secure connections. Its coil insulation is rated Class B, and it offers operate and release times of 40 ms and 20 ms, respectively.
This general purpose relay is a reliable component for power control circuits where high current switching is required. Its construction and specifications make it suitable for industrial and commercial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 24 VDC.
The contact current rating is 25 A.
The operating temperature range is -55°C to 80°C.
It has a DPDT (2 Form C) contact form.
It is a chassis mount relay.
