| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Insulation | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Lead Style | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

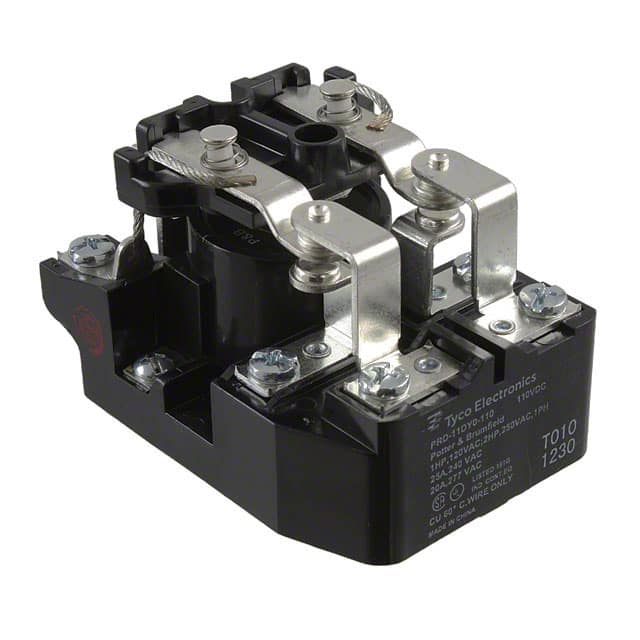

The TE Connectivity PRD-11DY0-110 is a general purpose relay belonging to the Power Relays, Over 2 Amps category. This DPDT (2 Form C) relay is rated for a contact current of 25A and a switching voltage of 240VAC. It operates with a 110VDC coil, requiring a must-operate voltage of 82.5 VDC and dropping out by 11 VDC. The relay has an operate time of 40 ms and a release time of 20 ms.
Designed for robust applications, it features silver contact material and Class B coil insulation. The relay is suitable for a wide operating temperature range from -55°C to 80°C. Mounting is achieved via chassis mount, and termination is handled through screw terminals. The RoHS status is compliant, and the Moisture Sensitivity Level is 1.
This relay is ideal for applications requiring reliable switching of higher current loads. Its general-purpose design makes it versatile for various industrial and commercial uses where dependable power control is essential.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 25 A.
The coil voltage is 110 VDC.
It has a DPDT (2 Form C) contact form.
The operating temperature range is -55°C to 80°C.
It is chassis mounted.
The termination style is screw terminal.
