| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

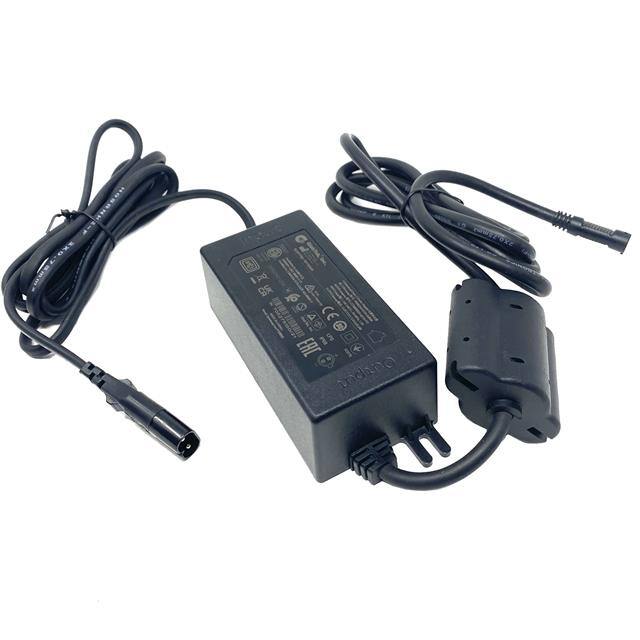

The GlobTek, Inc. PR9KE5416T00-IMR6B is a regulated switchmode AC-DC power supply designed for ICT, ITE, and medical applications. This desktop adapter provides a 12V output at 5.41A, delivering a total of 65W of power.
It features a wide input voltage range of 100-240V~ at 50-60 Hz and complies with USA DOE Level VI and Eco-design Directive 2009/125/EC efficiency standards. The unit operates within a temperature range of -20°C to 40°C and has a low no-load power consumption of 150mW maximum.
The adapter has a compact desktop form factor (Class II) with dimensions of 114.8mm x 57.1mm x 39.0mm. It includes a 1.50m cord and a T-plug system with interchangeable output connectors (5.5x2.5mm, 5.5x2.1mm, 3.5x1.3mm). Approvals include CB, CE, cETLus, and PSE, among others, indicating its suitability for international use.
This model is potted/encapsulated in a black plastic housing for durability and protection. It is suitable for medical applications and meets the 60601-1 standard.
The PR9KE5416T00-IMR6B provides an output voltage of 12.0V at 5.41A.
This adapter has a power rating of 65W.
The input voltage range is 100-240V AC.
It meets USA DOE Level VI and Eco-design Directive 2009/125/EC efficiency standards.
The operating temperature range is -20°C to 40°C.
It comes with a T-plug system that includes 5.5x2.5mm, 5.5x2.1mm, and 3.5x1.3mm plugs.
The dimensions are 114.8mm x 57.1mm x 39.0mm.
