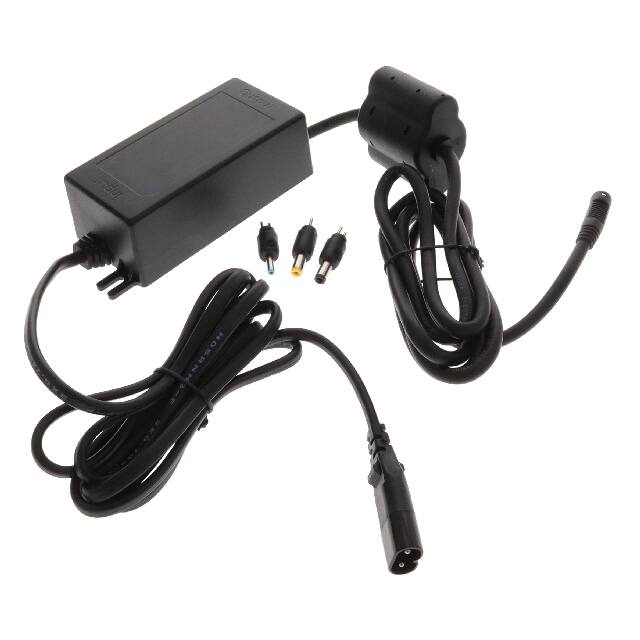

The GlobTek, Inc. PR9KD6000T00-IMR6B is a regulated switchmode AC-DC power supply designed for ITE (Commercial) and Medical applications. This desktop adapter operates with an input voltage range of 100-240V AC at 50-60 Hz and provides a stable output of 9V at 6A, delivering a total of 54W of power.
It features a compact form factor, measuring 124.8mm x 57.1mm x 39.0mm, and is rated for an operating temperature range of -20°C to 40°C. The adapter includes an IEC 320-C8 input connector and comes with a barrel plug kit for output, offering flexibility with 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm plug options. The integrated cord is 1.50 meters long.
This power supply meets USA DOE Level VI and Eco-design Directive 2009/125/EC efficiency standards, with a low no-load power consumption of 150mW maximum. It is also ruggedized and IP68 rated for dust-tight and waterproof performance. The unit carries multiple international approvals, including CB, CE, cETLus, EAC, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI, making it suitable for international use.
The output voltage is 9V.
The maximum output current is 6A.
The total power output is 54W.
It meets Level VI and CoC Tier 1 efficiency standards.
The operating temperature range is -20°C to 40°C.
It uses an IEC 320-C8 input connector.
The dimensions are 124.8mm x 57.1mm x 39.0mm.
