| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Features | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

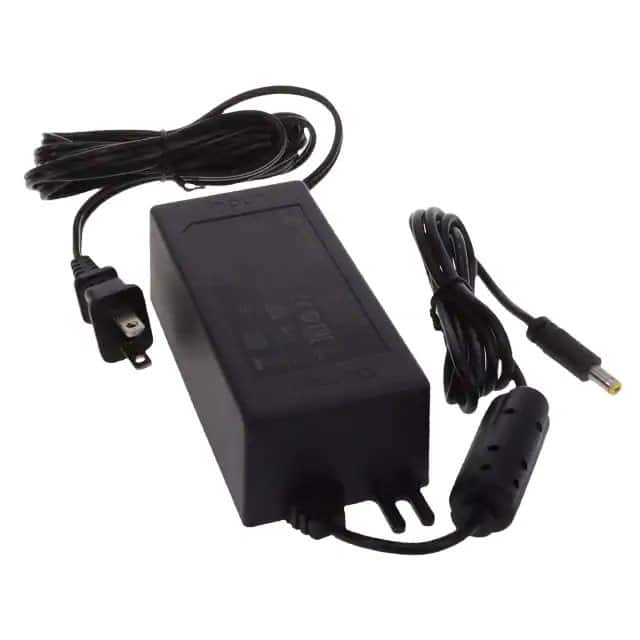

The GlobTek, Inc. PR91E5146CCP-IMR6B is a regulated switchmode AC-DC power supply designed for desktop applications. It delivers a stable 12V output at 5.41A, providing a total of 65W of power.
This adapter meets USA DOE Level VI and Eco-design Directive efficiency standards, ensuring minimal energy waste. It operates with an input voltage range of 100-240V AC at 50-60 Hz. The unit is potted and encapsulated in a durable black plastic housing, offering enhanced protection.
Key features include an IP68 rating for dust-tight and waterproof operation, making it suitable for demanding environments. The output connector is a standard 5.5mm x 2.1mm barrel plug with a positive center pin, and the input is via wire leads with a North American fixed cord. It is designed for ITE (Commercial) and Medical applications.
With dimensions of 114.8mm x 57.1mm x 39.0mm, this compact power supply is a reliable choice for various electronic systems requiring a robust and efficient power solution.
The PR91E5146CCP-IMR6B provides an output voltage of 12V at 5.41A.
This adapter has a power rating of 65W.
The PR91E5146CCP-IMR6B meets USA DOE Level VI efficiency standards.
The operating temperature range for the PR91E5146CCP-IMR6B is -20°C to 40°C.
The output connector is a Barrel Plug with a 2.1mm I.D. x 5.5mm O.D. x 11.0mm size.
Yes, the PR91E5146CCP-IMR6B features an IP68 rating, making it dust-tight and waterproof.
This power supply is suitable for ITE (Commercial) and Medical applications.
