| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

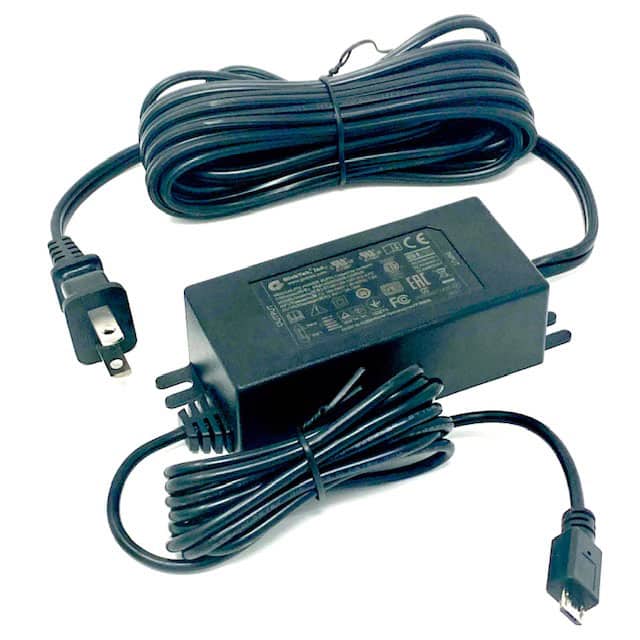

The GlobTek PR91A3000MSB-CIMRVB is a versatile 15W AC/DC desktop power supply, delivering a stable 5V at 3A output. This unit is certified for ITE (Commercial) and Medical applications, adhering to standards such as IEC 60950-1, IEC 60601-1, and IEC 60335-1.
Featuring a robust IP68 rating, this power supply is suitable for demanding environments, offering protection against dust and liquid immersion. It includes a NEMA 1-15P input connector and a USB Micro output connector, with a cord length of 1.50 meters. The power supply operates within a temperature range of -10°C to 40°C and boasts an Efficiency Level V rating.
Designed for reliability, it incorporates built-in protections such as over-current, short-circuit, and thermal protection. Its compact dimensions (97.2mm x 46.2mm x 32.0mm) make it suitable for various integration needs. The unit is potted/encapsulated in a plastic housing for added durability.
100-240 VAC at 50-60 Hz.
5 VDC at 3 A (15 W).
-10°C to 40°C.
Level V, CoC Tier 2.
USB Micro.
IP68.
CB, CE, cRUus, EAC, ETL, FCC, IEC, LPS, PSE, SIQ, Ukraine, VCCI, WEEE.
