| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Current | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

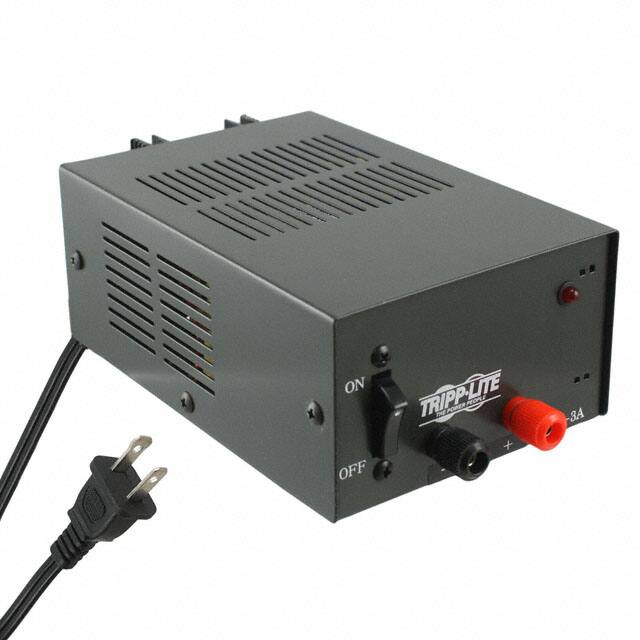

The Tripp Lite PR3/UL is a linear AC/DC converter designed for ITE (Commercial) applications. It efficiently converts 120VAC input to a regulated 13.8VDC output, providing up to 3A of current for a total power of 41W.
This converter features a benchtop mounting type and a compact design with dimensions of 190.5mm x 114.3mm x 76.2mm (7.50" L x 4.50" W x 3.00" H). It is suitable for various applications requiring stable DC power.
The PR3/UL is part of Tripp Lite's Trim Line Series, known for its low profile and compatibility with popular radio footprints. It is ideal for powering equipment such as CB radios, mobile audio systems, test bench equipment, and point-of-sale displays.
The output voltage is 13.8VDC.
The maximum output current is 3A.
The input voltage is 120VAC.
The PR3/UL is a linear AC/DC converter.
It is designed for benchtop mounting.
