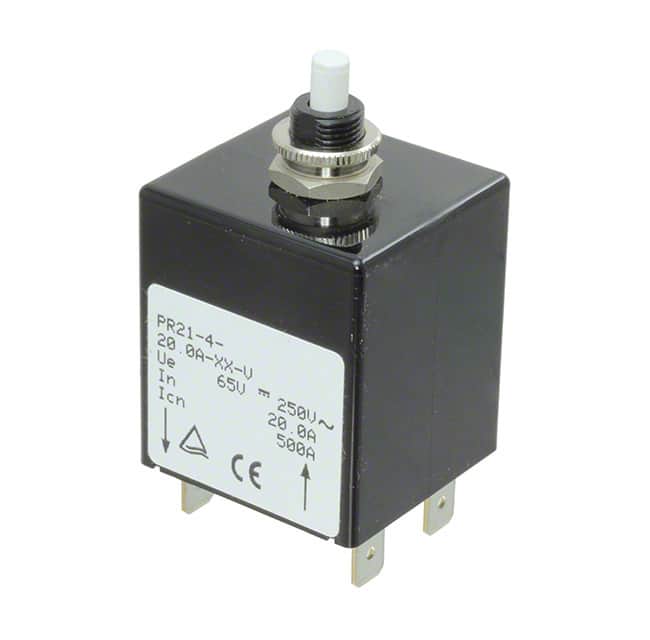

PR21-4-20.0A-XX-V The Sensata PR21-4-20.0A-XX-V is a 2-pole magnetic hydraulic delay circuit breaker rated for 20A and 125V. It features a push-to-reset actuator and panel mount design.
Mfr Part #:

PR21-4-20.0A-XX-V

Mfr Name: Sensata
Sensata
The Sensata PR21-4-20.0A-XX-V is a 2-pole magnetic hydraulic delay circuit breaker rated for 20A and 125V. It features a push-to-reset actuator and panel mount design.
Stock on Request

PR21-4-20.0A-XX-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

PR21-4-20.0A-XX-V Description

Short technical summary and product information.

This Sensata PR21-4-20.0A-XX-V is a 2-pole circuit breaker designed for reliable circuit protection. It utilizes a magnetic hydraulic delay mechanism for precise tripping characteristics.



The breaker is rated for a current of 20A and a voltage of 125V. It features a convenient push-to-reset actuator for easy operation after a trip event. The mounting type is panel mount, making it suitable for integration into various electrical enclosures and systems.



Key specifications include a 20A current rating and a 125V voltage rating. The breaker type is magnetic (hydraulic delay), and it has two poles. The actuator type is push to reset, and it is designed for panel mounting. It is also UL1077 recognized.



This component is suitable for applications requiring robust overcurrent protection with a clear indication and manual reset capability. Its panel mount design facilitates straightforward installation in control panels and equipment.

PR21-4-20.0A-XX-V Quick Information

Product Type: Circuit Breaker
Series: PR21
Canonical Name: Sensata PR21-4-20.0A-XX-V Magnetic Hydraulic Delay Circuit Breaker
Subcategory: Magnetic Hydraulic Delay

PR21-4-20.0A-XX-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PR21-4-20.0A-XX-V Features

  • 20A current rating for circuit protection.
  • 125V voltage rating for electrical systems.
  • Magnetic hydraulic delay breaker type.
  • Panel mount design for easy integration.
  • Push-to-reset actuator for operation.

PR21-4-20.0A-XX-V Applications

  • Used in control panel assemblies.
  • Suitable for equipment protection.
  • Ideal for power distribution.
  • Applied in industrial automation.

PR21-4-20.0A-XX-V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the PR21-4-20.0A-XX-V circuit breaker?

The current rating is 20A.

What is the voltage rating for this Sensata circuit breaker?

The voltage rating is 125V.

How many poles does the PR21-4-20.0A-XX-V have?

It has 2 poles.

What type of breaker mechanism does this unit use?

It uses a magnetic (hydraulic delay) mechanism.

What is the actuator type for this circuit breaker?

The actuator type is push to reset.

What is the mounting type for the PR21-4-20.0A-XX-V?

It is designed for panel mount.

Which approval agency recognizes this circuit breaker?

It is recognized by UL1077.

PR21-4-20.0A-XX-V Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
PR21-62-20.0A-XX-V
PR21-62-20.0A-XX-V
Sensata
The Sensata PR21-62-20.0A-XX-V is a 2-pole circuit breaker with a 20A current rating and 125V voltage rating. It features a magnetic hydraulic delay mechanism and a push-to-reset actuator.
