| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
226 pcs
|
226 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Q200 Qualified | |
| Composition | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating voltage, Umax. AC/DC | |
| Power (Watts) | |
| Power Rating | |
| Rated dissipation, P70 | |
| Resistance | |
| Resistance Range | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Tolerance |

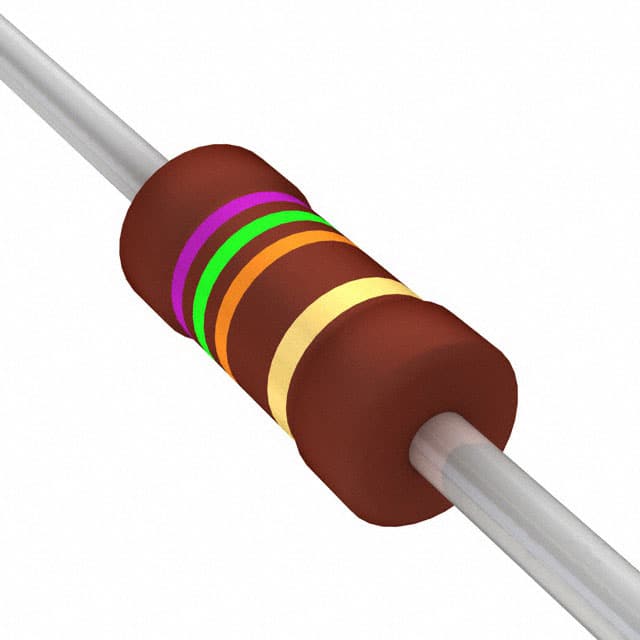

The Vishay Dale PR03000207502JAC00 is an axial metal film resistor designed for general purpose power applications. It offers a resistance value of 75 kΩ with a tolerance of ±5% and a power rating of 3W.
This resistor features a metal film technology deposited on a ceramic body, with tinned copper-clad iron connecting wires. It is coated with a red, non-flammable lacquer for protection and meets IEC 60115-1 specifications. The component is AEC-Q200 qualified, indicating its suitability for automotive electronics.
The encapsulation is resistant to cleaning solvents per IEC 60068-2-45. The resistor has a size of 0.205" Dia x 0.657" L (5.20mm x 16.70mm) and operates within a temperature range of -55°C to 155°C. Its flameproof insulation coating meets UL 94 V-0 requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the PR03000207502JAC00 resistor is 75 kΩ.
The power rating of the PR03000207502JAC00 resistor is 3W.
The tolerance of the PR03000207502JAC00 resistor is ±5%.
The operating temperature range for the PR03000207502JAC00 resistor is -55°C to 155°C.
The package size of the PR03000207502JAC00 resistor is 0.205" Dia x 0.657" L (5.20mm x 16.70mm).
Yes, the PR03000207502JAC00 resistor is AEC-Q200 qualified.
