| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,428 pcs
|
3428 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

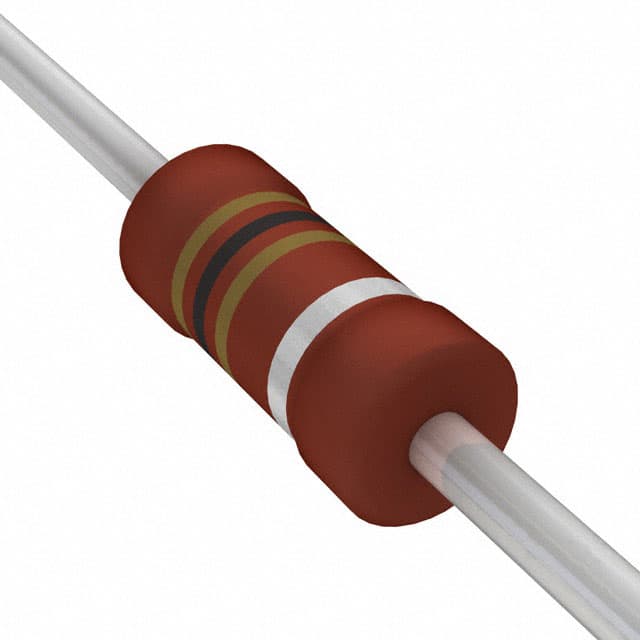

The Vishay Dale PR02FS0201000KR500 is a high-quality metal film resistor designed for demanding applications. It features a resistance value of 100 Ohms with a tolerance of ±10% and a power rating of 2 Watts.
This resistor is built with an inherent non-inductive design and offers superior surge handling capability, making it suitable for applications requiring defined fusible characteristics and high voltage pulse handling. It meets active and passive flammability requirements as defined in IEC 60115-1 and UL 94 V-0.
The operating temperature range for this component is -55°C to +200°C, with a temperature coefficient of ±250 ppm/K. The resistor has a size of 0.154" Dia x 0.394" L (3.90mm x 10.00mm) and features an axial termination style.
Key applications include general purpose power applications, lighting ballasts, lighting electronics, and as a snubber resistor for inductive loads. It is recognized by UL 1412 and CAN/CSA C22.2 No.60065 safety standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 100 Ohms.
The tolerance is ±10%.
The power rating is 2 Watts.
The operating temperature range is -55°C to 200°C.
The temperature coefficient is ±250 ppm/K.
The dimensions are 0.154" Dia x 0.394" L (3.90mm x 10.00mm).
It is flame proof, fusible, has pulse withstanding capability, and is designed for safety.
