| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
560 pcs
|
560 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC-Q200 | |
| Basic Specification | |
| Composition | |
| DIN Size | |
| Features | |
| Flammability | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Rated Dissipation P70 (@ 1 Ω ≤ R) | |
| Rated Dissipation P70 (@ R < 1 Ω) | |
| Resistance | |
| Resistance Range | |
| Resistance Tolerance | |
| Stability after Damp heat test | |
| Stability after Endurance test | |
| Stability after Soldering | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Thermal Resistance | |
| Tolerance |

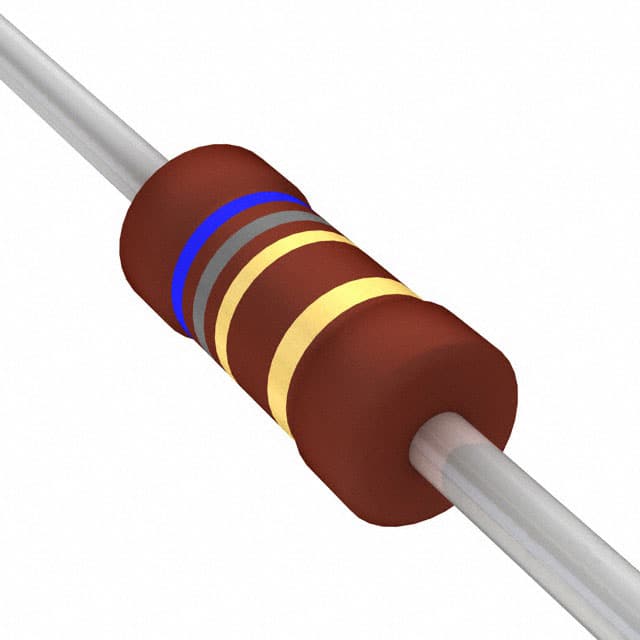

This Vishay Dale PR02000206808JA100 is a high-quality axial metal film resistor designed for general purpose power applications. It offers a resistance value of 6.8 Ohms with a tolerance of ±5% and a power rating of 2W at 70°C.
The resistor features a homogeneous metal alloy film deposited on a ceramic body, with tinned copper-clad iron or electrolytic copper leads. It is coated with a non-flammable red lacquer that provides electrical, mechanical, and climatic protection, and is resistant to cleaning solvents per IEC 60068-2-45. The encapsulation meets UL 94 V-0 flammability requirements.
With a temperature coefficient of ±250ppm/°C and an operating temperature range of -55°C to 155°C, this component is suitable for demanding environments. It is also AEC-Q200 qualified, making it ideal for automotive electronics and other critical applications. The axial package measures 0.154" Dia x 0.394" L (3.90mm x 10.00mm).
Key specifications include a resistance range from 0.33 Ohms to 1 MΩ, a maximum operating voltage of 500V, and defined fusing characteristics. Stability is maintained after endurance tests (± (5 % R + 0.1 Ω)), damp heat tests (± (3 % R + 0.1 Ω)), and soldering (± (1 % R + 0.05 Ω)).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 6.8 Ohms.
The power rating is 2W.
The tolerance is ±5%.
The temperature coefficient is ±250ppm/°C.
The operating temperature range is -55°C to 155°C.
Yes, the PR02000206808JA100 is AEC-Q200 qualified.
Yes, the flameproof insulation coating meets UL 94 V-0 requirements.
