| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Lead Style | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

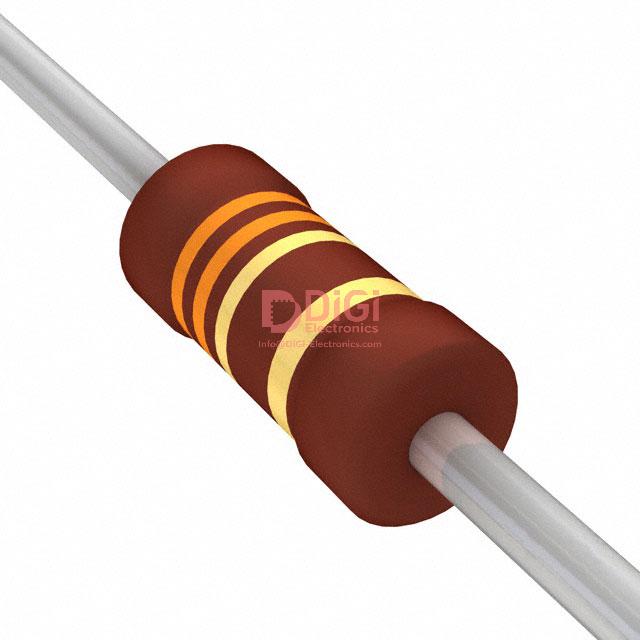

This Vishay Dale PR02000203308JR500 is an axial metal film resistor designed for general purpose power applications. It offers a resistance value of 3.3 Ohms with a tolerance of ±5% and a power rating of 2W at 70°C.
The resistor features a metal film technology on a ceramic body, with tinned copper or copper-clad iron leads. It is coated with a non-flammable lacquer providing electrical, mechanical, and climatic protection, and is resistant to cleaning solvents per IEC 60068-2-45.
Key specifications include a temperature coefficient of ±250ppm/°C and an operating temperature range of -55°C to 155°C. The component is AEC-Q200 qualified, indicating suitability for automotive electronics. It also meets active and passive flammability requirements as defined in IEC 60115-1 and has a flameproof insulation coating meeting UL 94 V-0 requirements.
The PR02000203308JR500 is supplied in an axial package with dimensions of 0.154" Dia x 0.394" L (3.90mm x 10.00mm). Its defined fusing characteristics make it suitable for applications requiring safety features.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the PR02000203308JR500 resistor is 3.3 Ohms.
The power rating of the PR02000203308JR500 resistor is 2W.
The tolerance of the PR02000203308JR500 resistor is ±5%.
The temperature coefficient of the PR02000203308JR500 resistor is ±250ppm/°C.
The operating temperature range for the PR02000203308JR500 resistor is -55°C to 155°C.
Yes, the PR02000203308JR500 resistor is AEC-Q200 qualified.
The PR02000203308JR500 is a metal film resistor with an axial package.
