| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Q200 Qualified | |
| Automotive Grade | |
| Composition | |
| Features | |
| Lead Style | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Tolerance |

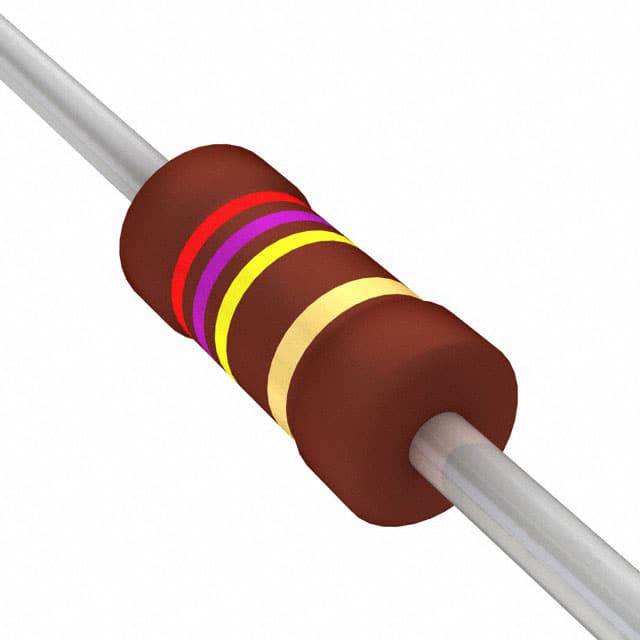

The Vishay Dale PR02000202703JR500 is a high-quality axial metal film resistor designed for general purpose power applications. It features a resistance value of 270 kΩ with a tolerance of ±5% and a power rating of 2W. The resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±250ppm/°C.
Constructed with a homogeneous metal alloy film on a ceramic body, this resistor offers defined fusing characteristics and meets active and passive flammability requirements. Its flameproof insulation coating meets UL 94 V-0 standards. The encapsulation is resistant to cleaning solvents per IEC 60068-2-45.
The component is AEC-Q200 qualified, making it suitable for automotive electronics. Its axial package measures 0.154" in diameter and 0.394" in length (3.90mm x 10.00mm). Stability is maintained after endurance, damp heat, and soldering tests.
This resistor is part of the PR01, PR02, PR03 series, offering high power in small packages. It is ideal for applications requiring reliable power handling and stability under various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 270 kΩ.
The power rating is 2W.
The tolerance is ±5%.
The operating temperature range is -55°C to 155°C.
Yes, this resistor is AEC-Q200 qualified.
Yes, it meets active and passive flammability requirements as defined in IEC 60115-1 and has a flameproof insulation coating meeting UL 94 V-0 requirements.
